Basketball Court Lighting

As a professional leader in the lamp factory sector, we specialize in advanced lighting management system integrations, seamless lighting system installation solutions, durable infrastructure compatible with sports lighting poles, state-of-the-art sports stadium led lighting, and high-performance sports field lights.

Key Specifications & Configuration

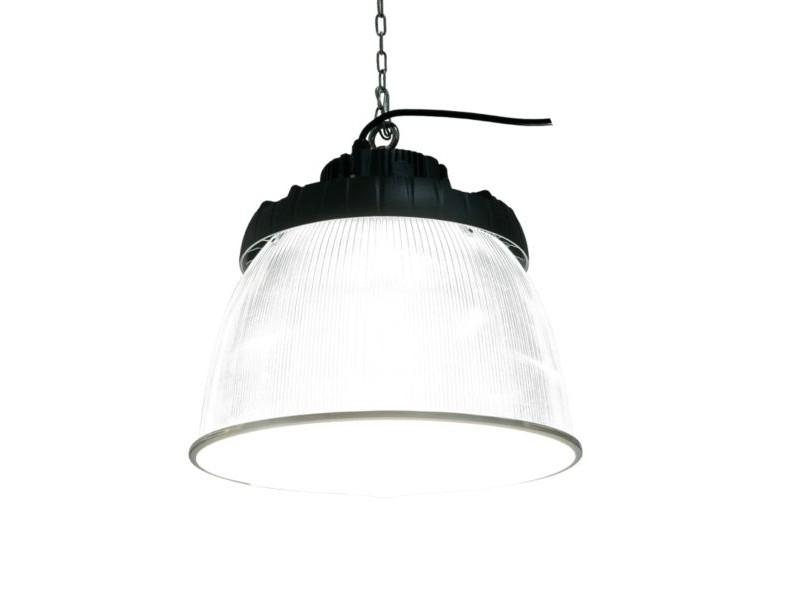

• Product Model: HDLS-100 / 150 / 200W Stadium High Bay Light.
• Optical Design: PC lens circular arrangement design featuring anti-UV aging properties and high luminous efficacy output.
• Light Distribution Options: Professional 60° / 90° / 120° light distribution designs (including an anti-glare cover) providing high luminous efficacy output to flexibly meet diverse court application demands.
• Visual Clarity: CRI 70–90 optional, ensuring that athletes and the ball are clearly visible on the court.

Technical Parameters by Power Range

1. HDLS-100W Model

• Input Voltage: AC 100–220V, 50/60 Hz.
• Rated Power: 100W.
• Light Source: 2835 LED.
• Power Factor: >0.98.
• Color Rendering Index (CRI): Customizable.
• Color Temperature: Customizable.
• Light Distribution: Three or more distribution options (including anti-glare cover).
• IP Rating: IP65.
• Dimensions:  Ø278*（189.1+290）mm
• Fixture Weight: 2.18 kg.

2. HDLS-150W Model

• Input Voltage: AC 100–220V, 50/60 Hz.
• Rated Power: 150W.
• Light Source: 2835 LED.
• Power Factor: >0.98.
• Color Rendering Index (CRI): Customizable.
• Color Temperature: Customizable.
• Light Distribution: Three or more distribution options (including anti-glare cover).
• IP Rating: IP65.
• Dimensions:  Ø320*（189.1+320）mm
• Fixture Weight: 2.72 kg.

3. HDLS-200W Model

• Input Voltage: AC 100–220V, 50/60 Hz.
• Rated Power: 200W.
• Light Source: 2835 LED.
• Power Factor: >0.98.
• Color Rendering Index (CRI): Customizable.
• Color Temperature: Customizable.
• Light Distribution: Three or more distribution options (including anti-glare cover).
• IP Rating: IP65.
• Dimensions:  Ø360*（196.2+350）mm
• Fixture Weight: 3.36 kg.

Material & Craftsmanship

• Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, offering high-temperature resistance, excellent weather resistance, and rich color options.
• Structural Design: Overall die-cast molded lamp body design that is both aesthetic and professional.
• Thermal Management: The backside utilizes a fin-type heat dissipation structure for superb cooling performance. An internal sunken design and convection vents optimize airflow quality, enhance heat dissipation efficiency, and fully guarantee the service life of the fixture.

Electrical & Safety Features

• Power Supply Integration: Equipped with a built-in power supply featuring an instant-start function and a power factor above 0.98, ensuring high electrical efficiency, safety, and reliability.
• Protection Grade: IP65 protection level combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety.

Applications

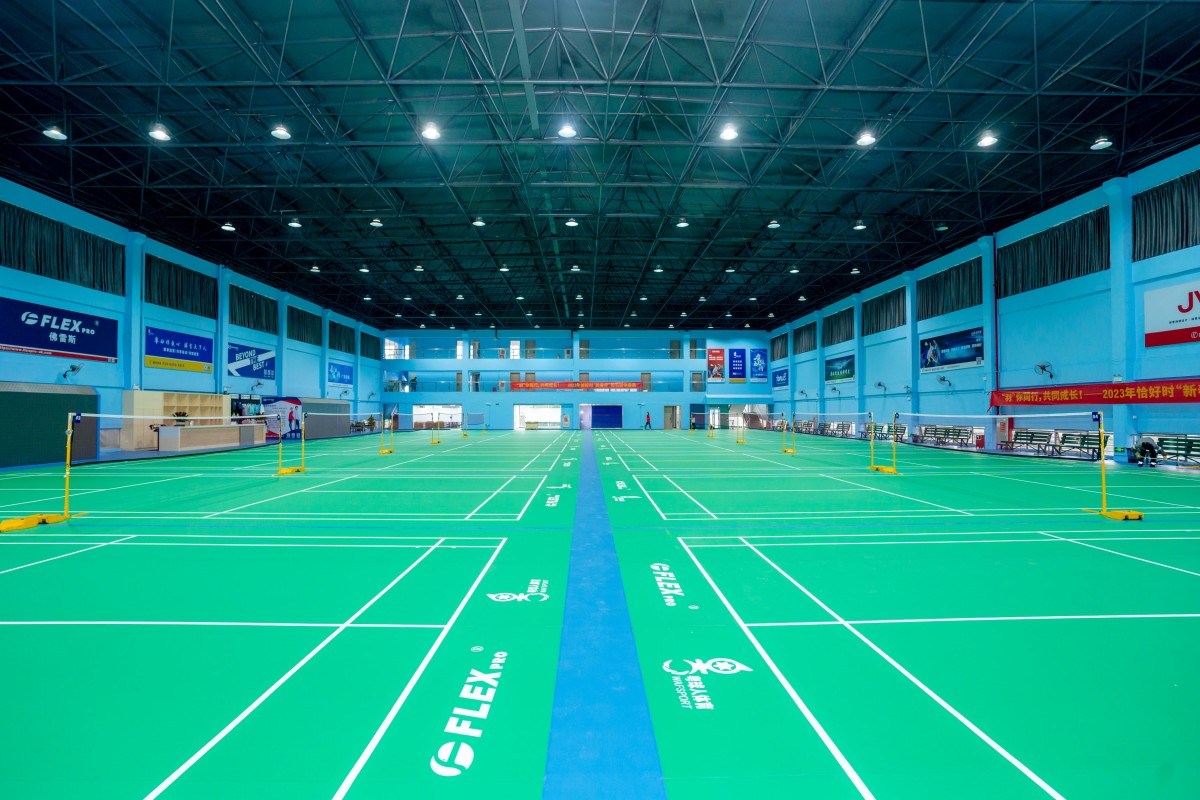

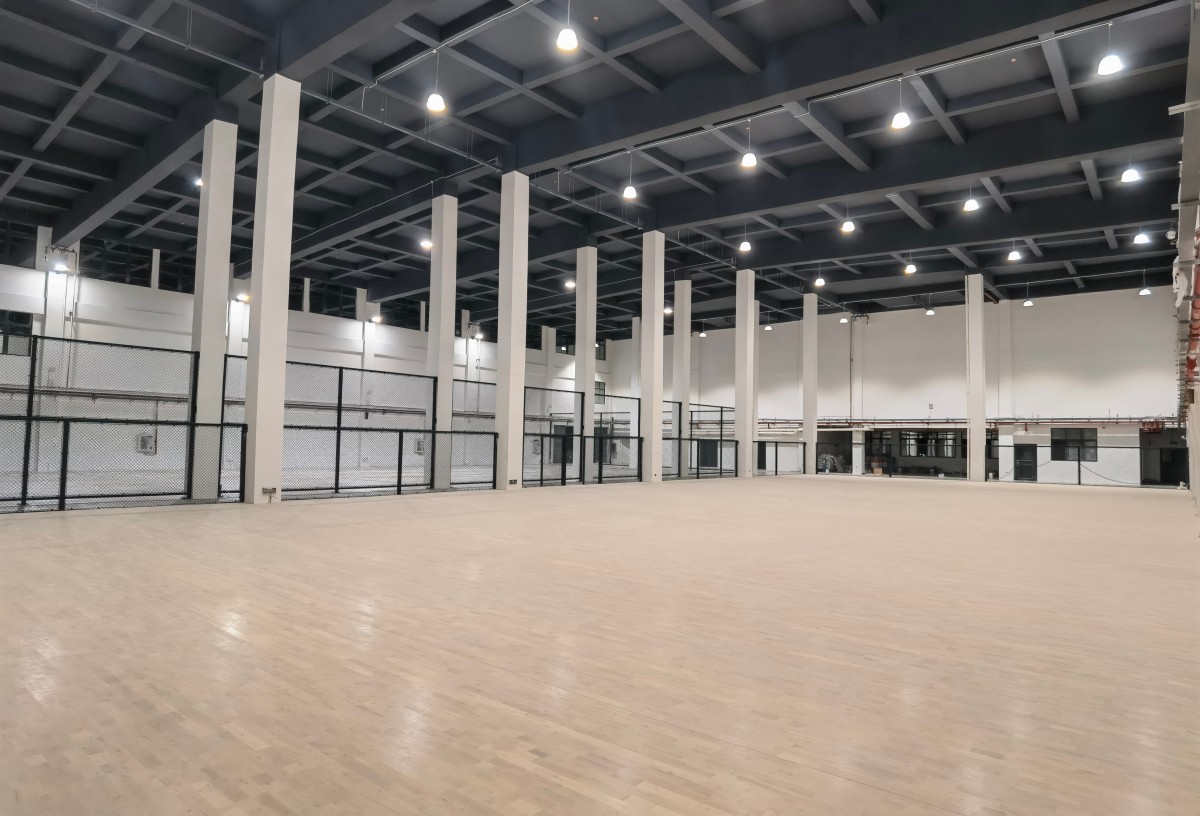

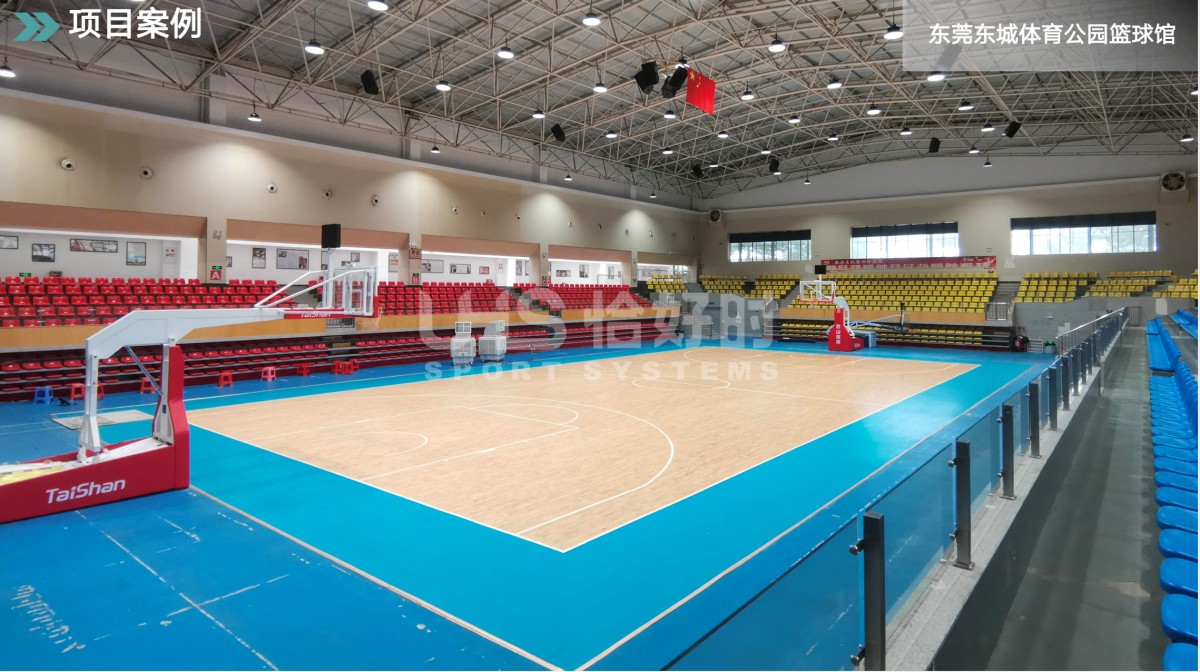

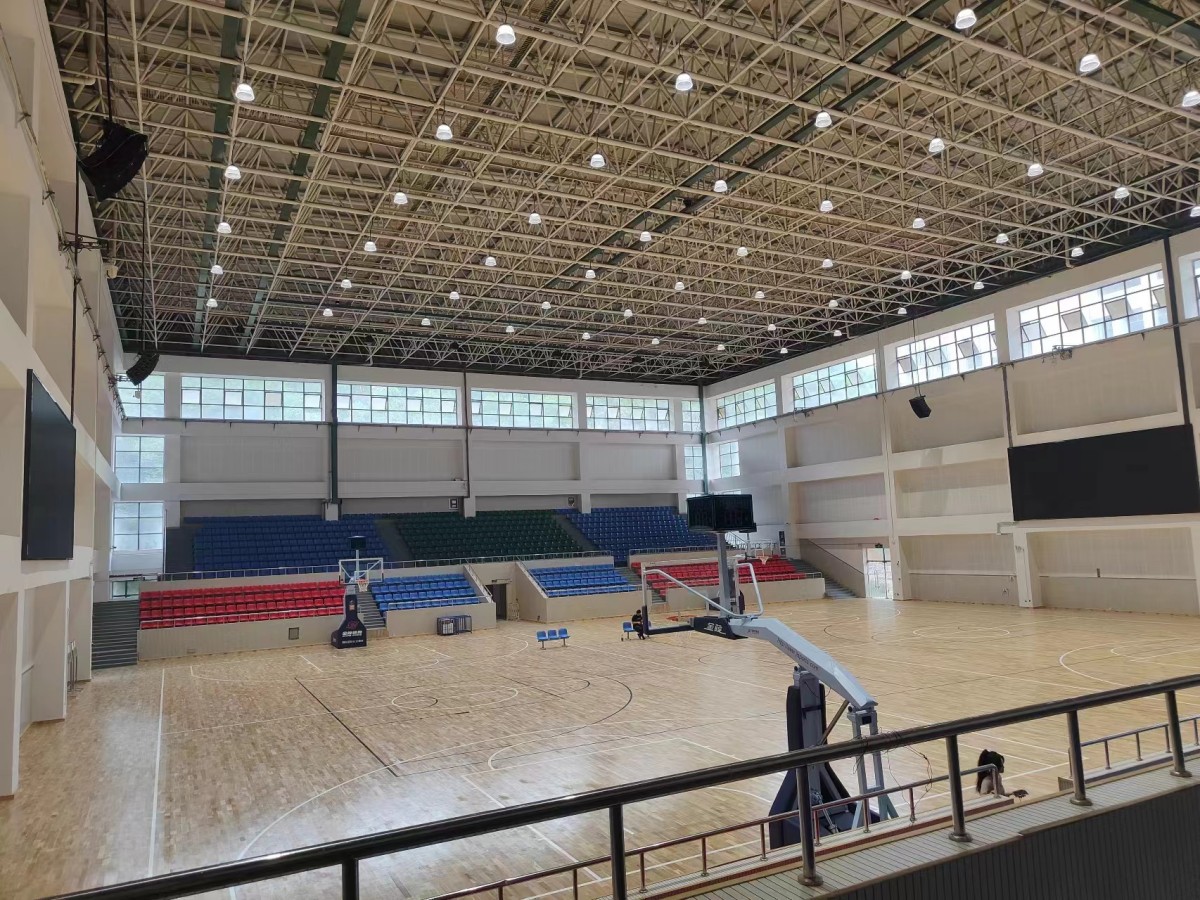

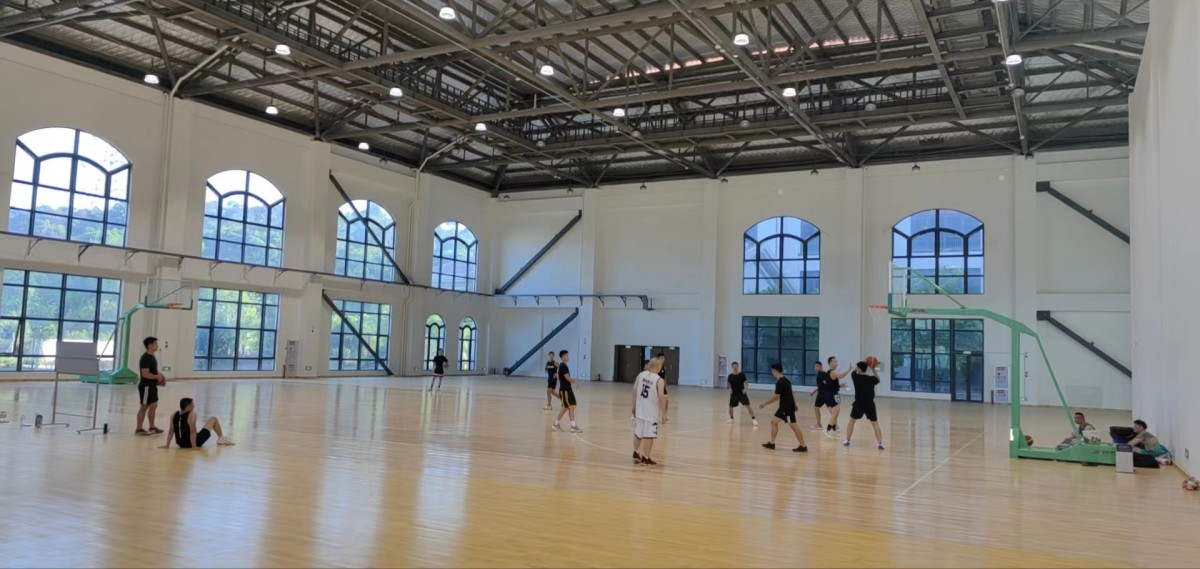

• Target Venues: Widely applicable for indoor football fields, indoor tennis courts, indoor basketball courts, indoor badminton courts, indoor comprehensive gymnasiums, and other sports floodlighting venues.
