Basketball Court Lighting

As a leading led lighting manufacturer specializing in advanced light manufacturing, we proudly present our high-performance sports light fixture engineered for elite athletic environments.

Key Specifications & Configuration

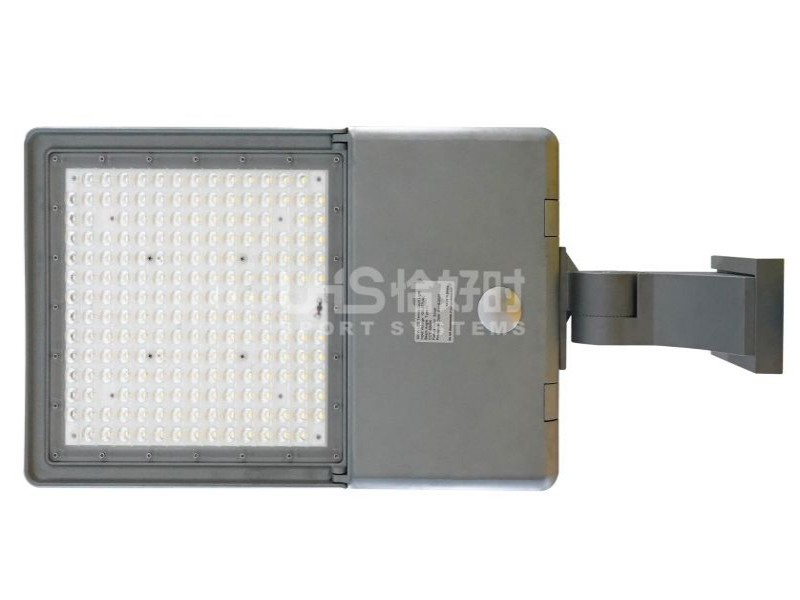

• Product Model: LTCS-360/460/560W Professional Sports Court Light
• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 360W / 460W / 560W
• Power Factor: >0.98, featuring a built-in power supply with an instant-start function for high efficiency, safety, and reliability
• Light Source: Lumileds 5050 LED
• Luminous Efficacy: Up to 160 lm/W high-efficiency output utilizing an integrated PC lens and matrix arrangement with an anti-glare grid net design
• Color Rendering Index (CRI): Customizable (CRI 70–90 optional to ensure athletes and the ball are clearly visible on the court)
• Color Temperature: Customizable color temperature
• Light Distribution: Three or more optical distribution options. Professional light distribution is specifically tailored for dual-side lighting arrangements on outdoor tennis courts, effectively improving light utilization and minimizing spill light.
• IP Rating: IP66 protection level, combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety
• Dimensions: 933 mm × 480 mm × 142 mm
• Fixture Weight: 15.5 kg

Material & Craftsmanship

• Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, offering excellent high-temperature resistance, weather resistance, and rich color choices.
• Electrical Design: Features a hinged power supply sealing cover design for easy maintenance and reliable operation.

Functional Highlights & Design

• Lightweight & Integrated Body: Features an integrated molding lamp body that is both aesthetic and professional.
• Advanced Thermal Management: The backside utilizes a fin-type heat dissipation structure to deliver exceptional thermal performance.
• Flexible Installation Brackets: Available with both fixed-angle and adjustable-angle bracket options. The adjustable bracket includes clear scale markings, allowing for flexible projection angle adjustments in any direction.

Applications

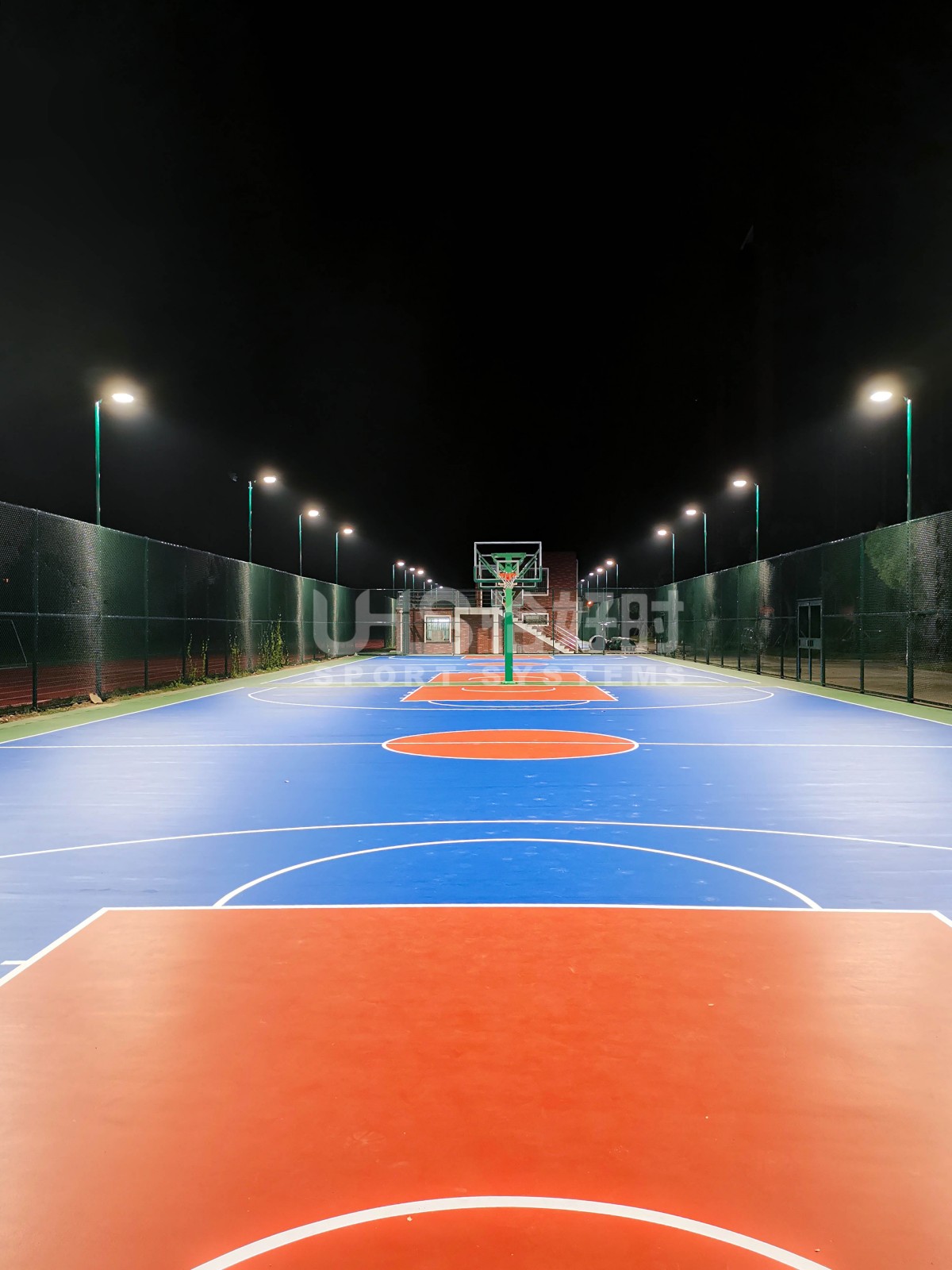

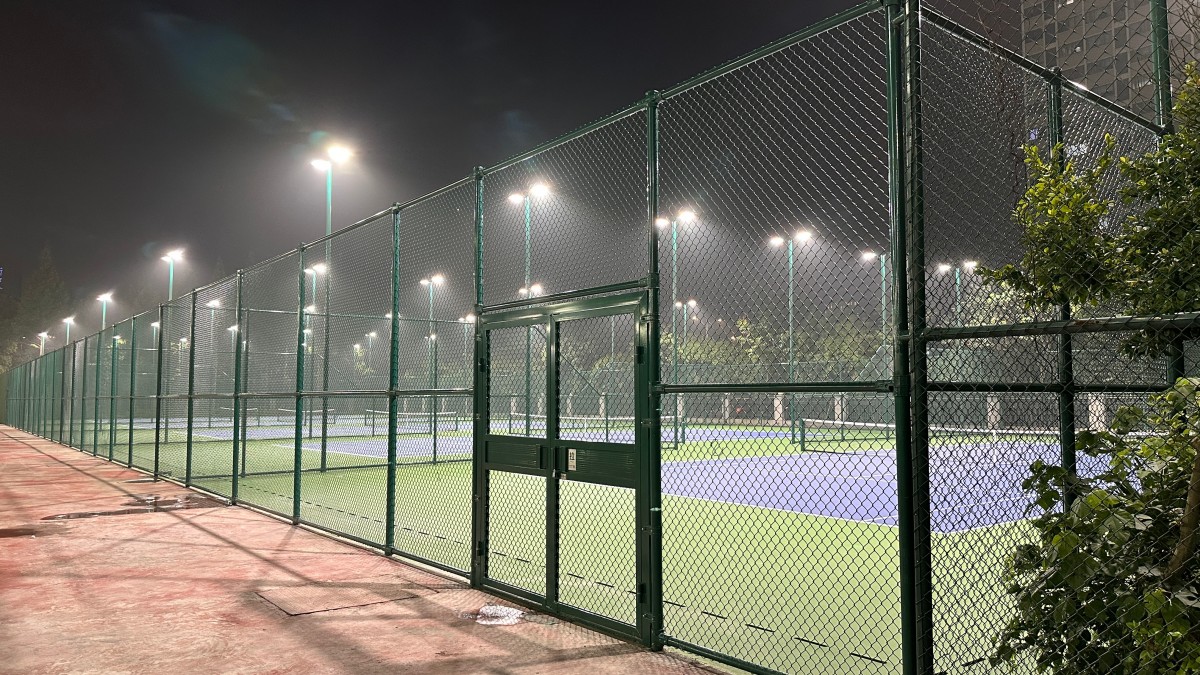

Widely applicable as professional led tennis court lights, premium sports field lighting, for tennis courts, basketball courts, 5-a-side football fields, and other sports floodlighting venues.
