Football Pitch Lighting

As a professional led high bay light manufacturer and trusted name among led lamps manufacturers and manufacturers of lamps, we specialize in advanced led lighting system designs. We proudly provide elite sports light and high-performance led sport lights solutions engineered for indoor athletic venues.

Key Specifications & Configuration

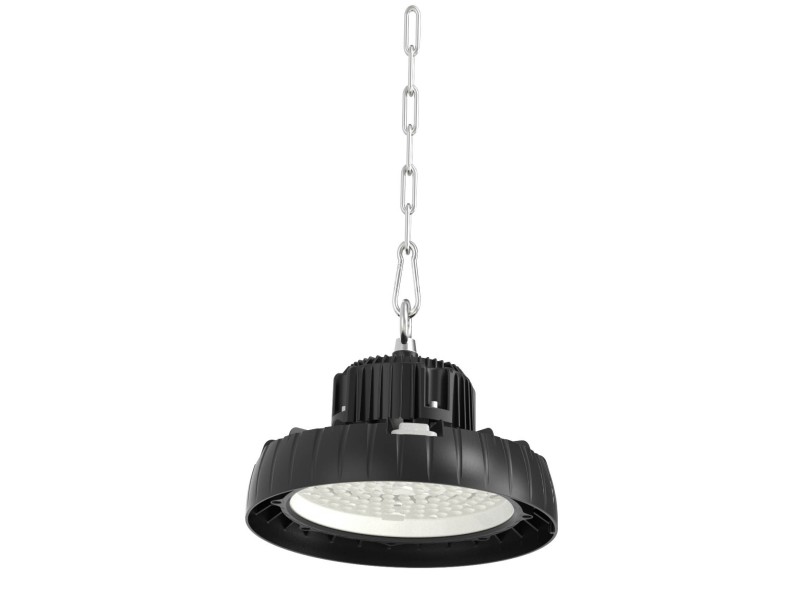

• Product Model: HDL-100 / 150 / 200W Stadium High Bay Light.

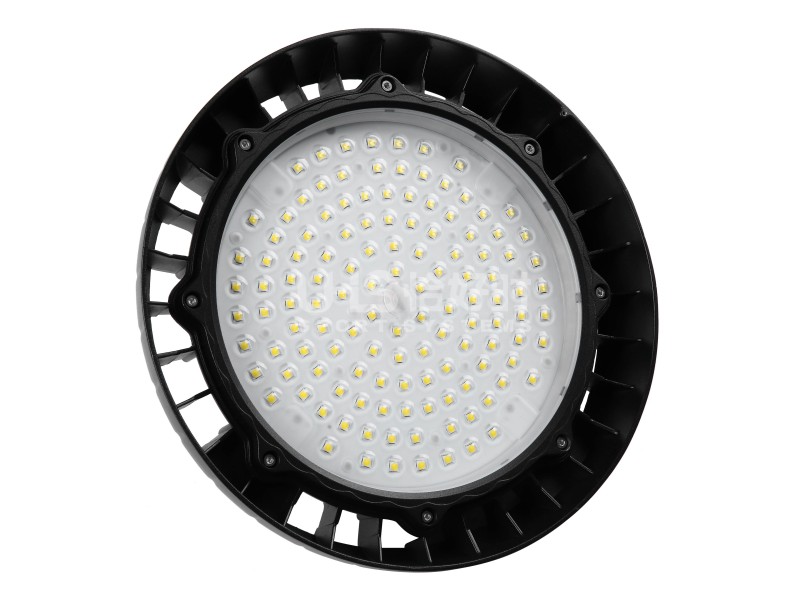

• Optical Design: Features a circular arrangement of PC lenses with anti-UV aging properties, delivering high luminous efficacy output.
• Light Distribution Options: Offers three professional light distribution options (60° / 90° / 120°), allowing flexible choices to meet diverse court application demands.
• Visual Clarity: CRI 70–90 optional, ensuring that athletes and the ball are clearly visible on the court.

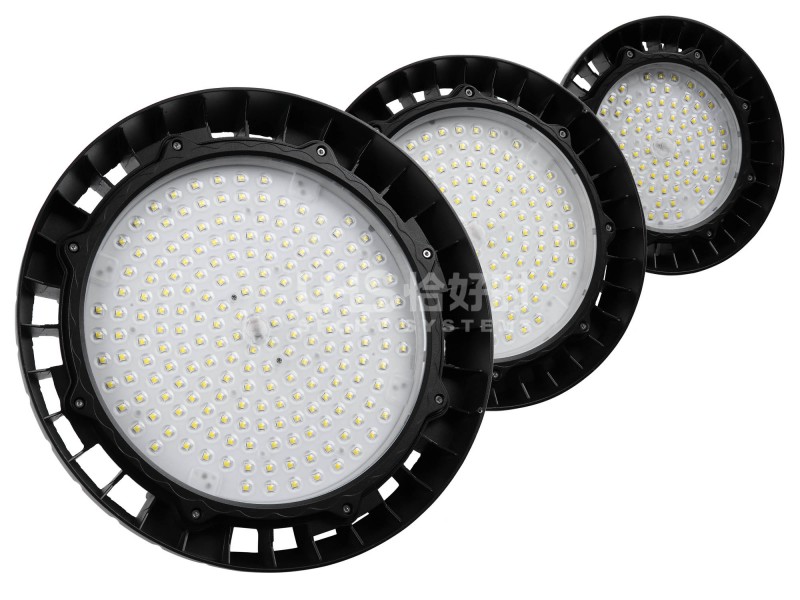

Technical Parameters by Power Range

1. HDL-100W Model

• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 100W
• Light Source: Lumileds 5050 LED
• Power Factor: >0.98
• Color Rendering Index (CRI): Customizable
• Color Temperature: Customizable color temperature
• Light Distribution: Three or more distribution options
• IP Rating: IP65
• Dimensions: 248 mm × 248 mm × 182 mm
• Fixture Weight: 2.9 kg

2. HDL-150W Model

• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 150W
• Light Source: Lumileds 5050 LED
• Power Factor: >0.98
• Color Rendering Index (CRI): Customizable
• Color Temperature: Customizable color temperature
• Light Distribution: Three or more distribution options
• IP Rating: IP65
• Dimensions: 319 mm × 319 mm × 183 mm
• Fixture Weight: 4.6 kg

3. HDL-200W Model

• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 200W
• Light Source: Lumileds 5050 LED
• Power Factor: >0.98
• Color Rendering Index (CRI): Customizable
• Color Temperature: Customizable color temperature
• Light Distribution: Three or more distribution options
• IP Rating: IP65
• Dimensions: 400 mm × 400 mm × 202 mm
• Fixture Weight: 6.2 kg

Material & Craftsmanship

• Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, offering high-temperature resistance, excellent weather resistance, and rich color options.

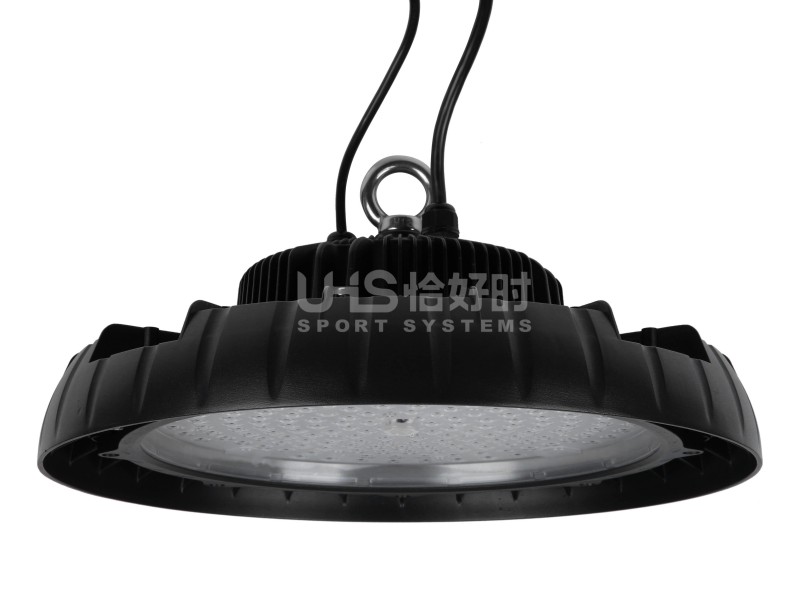

• Structural Design: Features an overall die-cast molded lamp body that is both aesthetic and professional.
• Thermal Management: The backside utilizes a fin-type heat dissipation structure for superb thermal performance. An internal sunken design and convection vents optimize airflow quality, enhance cooling efficiency, and fully guarantee the service life of the fixture.

Electrical & Safety Features

• Power Supply Integration: Equipped with a built-in power supply featuring an instant-start function and a power factor above 0.98, ensuring high electrical efficiency, safety, and reliability.
• Protection Grade: IP65 protection level combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety.

Applications

• Target Venues: Widely applicable for indoor football fields, indoor tennis courts, indoor basketball courts, indoor badminton courts, indoor comprehensive gymnasiums, and other sports floodlighting venues.
