Football Pitch Lighting

As an experienced led light factory and professional lighting manufacturer, we collaborate closely with trusted lamp components suppliers to deliver advanced lighting system design, high-performance led tennis court lights, and elite led sports light solutions.

Key Specifications & Configuration

• Product Models: LFL-200W / 300W LED Stadium Floodlight.
• Optical System: Features a modular PC lens with a matrix arrangement design, delivering a high luminous efficacy output of up to 140 lm/W.
• Light Distribution: Specialized optical distribution tailored for dual-side lighting arrangements on outdoor courts, featuring four or more professional light distribution options to effectively maximize light utilization and minimize spill light.
• Visual Clarity: CRI 70–90 optional, ensuring that athletes and the ball are clearly visible on the court.

Technical Parameters by Power Range
1. LFL-200W Model

• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 200W
• Light Source: Lumileds 3030 LED
• Power Factor: >0.98
• Color Rendering Index (CRI): Customizable
• Color Temperature: Customizable
• Light Distribution Options: Four or more options
• IP Rating: IP66
• Dimensions: 489 mm × 350 mm × 59 mm
• Fixture Weight: 5.8 kg

2. LFL-300W Model

• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 300W
• Light Source: Lumileds 3030 LED
• Power Factor: >0.98
• Color Rendering Index (CRI): Customizable
• Color Temperature: Customizable
• Light Distribution Options: Four or more options
• IP Rating: IP66
• Dimensions: 496 mm × 503 mm × 65 mm
• Fixture Weight: 10.3 kg

Material & Craftsmanship

• Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, providing exceptional high-temperature resistance, weather resistance, and rich color options.
• Structural Design: Features a lightweight design with an integrated die-cast lamp body that is both aesthetic and professional.

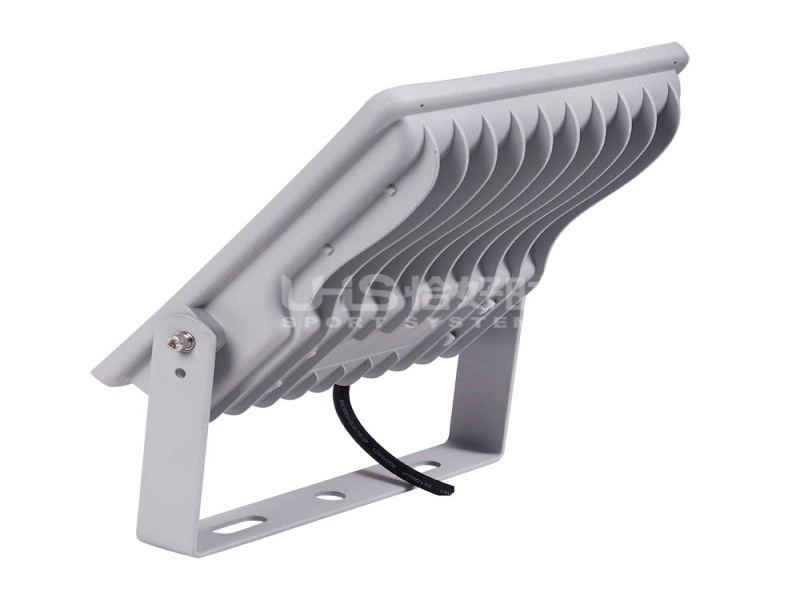

• Thermal Management: The backside utilizes a fin-type heat dissipation structure to deliver superb cooling performance.

Electrical & Safety Features

• Power Supply Integration: Equipped with a built-in brand power supply featuring an instant-start function and a high power factor (>0.95 to >0.98), ensuring high electrical efficiency, safety, and reliability.
• Protection Grade: IP65/IP66 protection level combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety.

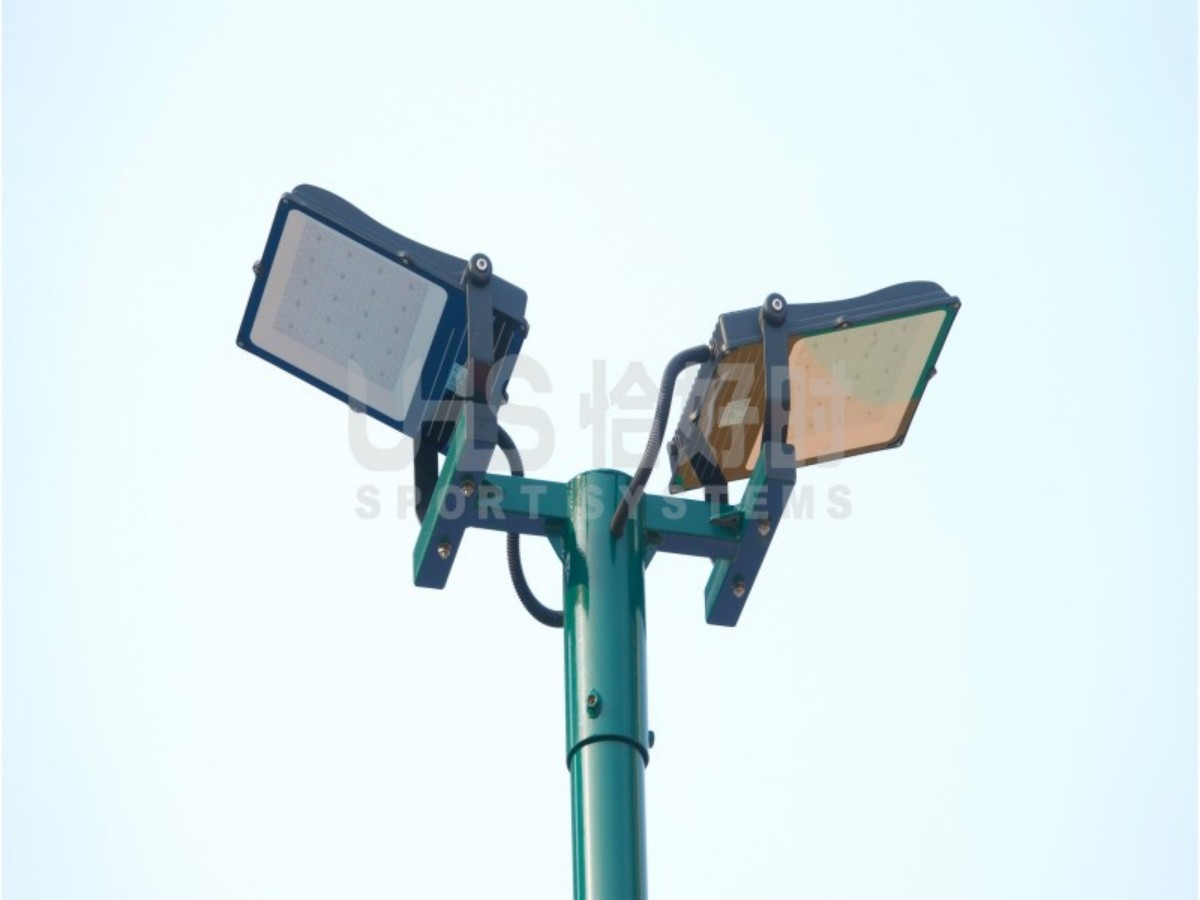

• Adjustable Bracket: Designed with an adjustable-angle bracket featuring precise scale markings, allowing for arbitrary angle adjustments of the projection direction.
