LSS Series Professional Sports Field High Mast Light
Brand: 【UHS】
Product Name: 【Professional Sports Field High Mast Light】
Item NO.：【LSS Series】
Input Voltage: 【AC 100–220V, 50/60 Hz】
Rated Power: 【400/500/600/800/1000/1200/1500W】
Light Source: 【Lumileds 5050 LED】
Size /Dimension:【661.6 mm × 607 mm × 390 mm】
Introduction

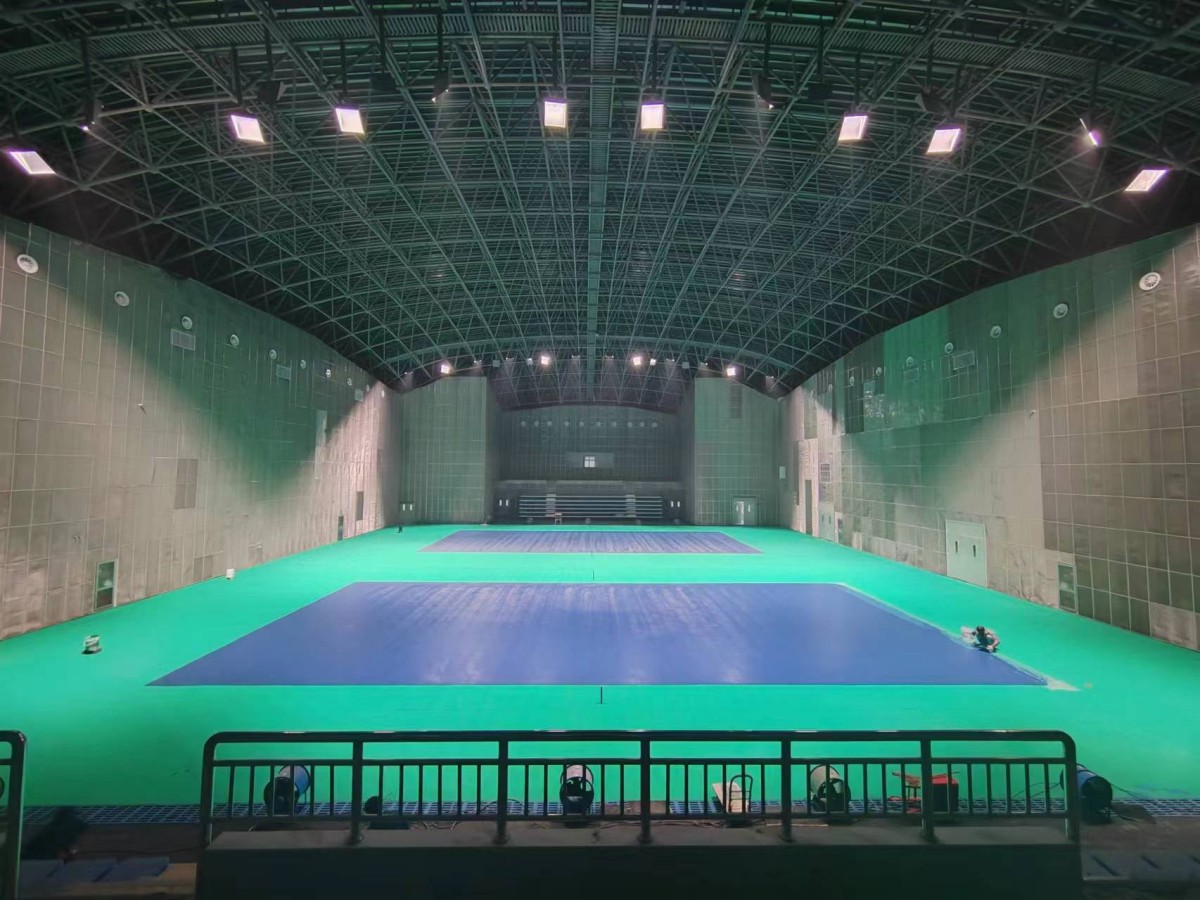

As a trusted choice among professional high mast lamp manufacturers and high mast lamp suppliers, we proudly introduce our advanced the light system solution, engineered to provide elite sports court lighting and durable sports lighting fixtures tailored for heavy-duty sports field high mast light applications.
Key Specifications & Configuration

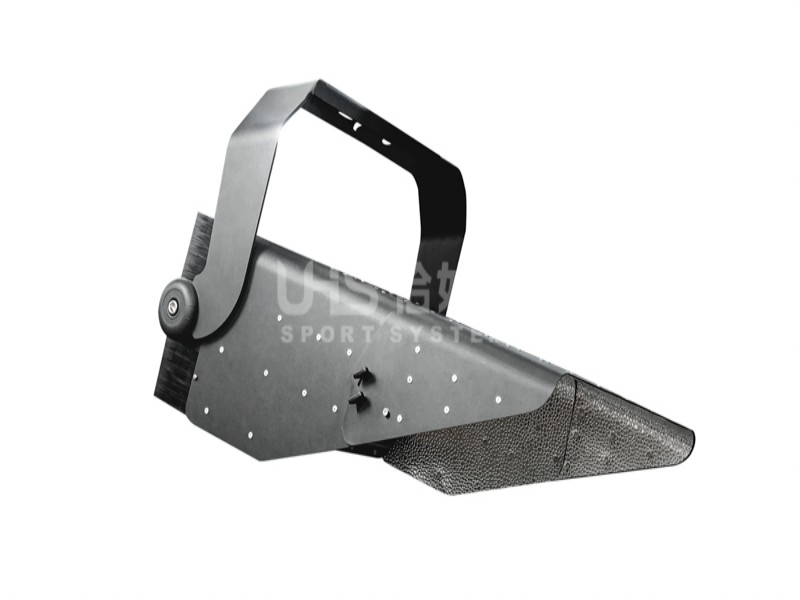

- Product Model: LSS-400/500/600/800/1000/1200/1500W Stadium High Mast Light (Featuring a driver-separated installation design).

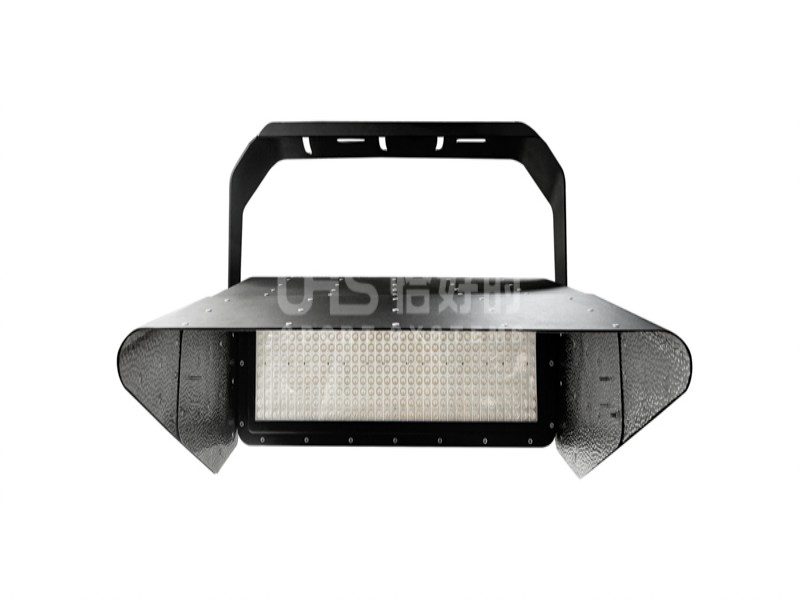

- Optical System: Built with optical-grade PC lenses that feature high light transmittance, superior optical efficiency, great reliability, high stability, and high luminous efficacy output.

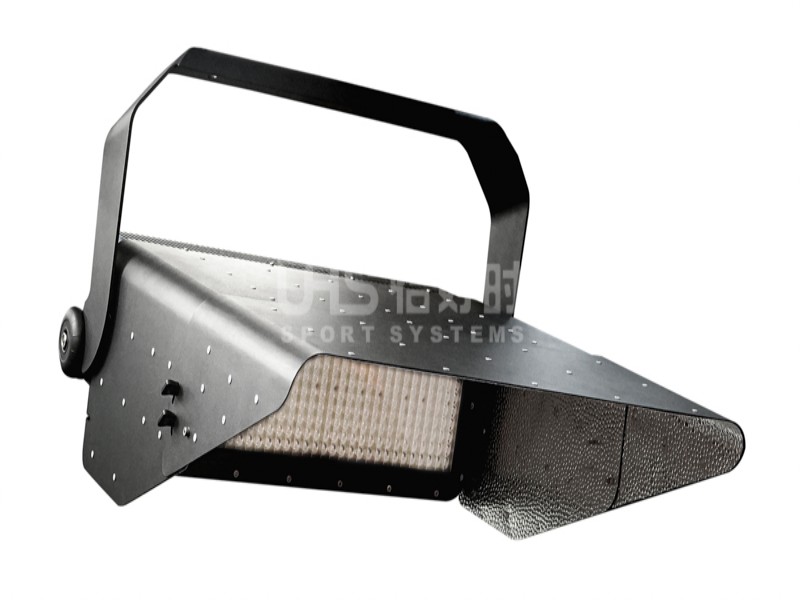

- Anti-Glare Engineering: Features a built-in anti-glare grid structure combined with an external anti-glare shield, achieving a low glare index for ultimate eye protection.
- Precision Light Distribution: Employs advanced calculus lens design for precise control over light distribution, offering three or more professional light distribution options to flexibly address diverse stadium application demands.
Technical Parameters by Power Range
1. LSS-400 / 500 / 600W Models
- Input Voltage: AC 100–220V, 50/60 Hz.
- Rated Power: 400W / 500W / 600W.
- Light Source: Lumileds 5050 LED.
- Power Factor: >0.98.
- Color Rendering Index (CRI): Customizable (Optional CRI 70–90 for true color restoration, minimal light decay, and a long lifespan).
- Color Temperature: Customizable color temperature.
- Light Distribution Options: Three or more professional options.
- IP Rating: IP66.
- Dimensions: 661.6 mm × 607 mm × 390 mm.
- Fixture Weight: 15.8 kg.
2. LSS-800 / 1000 / 1200 / 1500W Models
- Input Voltage: AC 100–220V, 50/60 Hz.
- Rated Power: 800W / 1000W / 1200W / 1500W.
- Light Source: Lumileds / CREE LED.
- Power Factor: >0.98.
- Color Rendering Index (CRI): Customizable.
- Color Temperature: Customizable color temperature.
- Light Distribution Options: Three or more professional options.
- IP Rating: IP66.
- Dimensions: 921 mm × 650 mm × 527 mm.
- Fixture Weights:
• 25.4 kg (for 800W / 1000W models)
• 28.3 kg (for 1200W model)
• 30.2 kg (for 1500W model)
Material & Craftsmanship
- Heatsink Surface Treatment: The lamp body heatsink undergoes an anodizing process, creating a dense protective layer with exceptional weather resistance.
- Structural Design: Features a robust, rugged overall styling that delivers both aesthetic appeal and professional performance.
- Advanced Thermal Management: The backside utilizes a fin-type heat dissipation structure for superb thermal performance, complemented by an internal sunken design and convection vents to optimize airflow quality and enhance cooling efficiency.
Electrical & Safety Features
- Power Supply Integration: Equipped with an external power supply featuring an instant-start function and a power factor above 0.98, ensuring high electrical efficiency, safety, and reliability.
- Protection Grade: IP66 protection level combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety.
