Acrylic Sports Surface

Established in 2002, TOPLUS is a nationally recognized brand specializing in the R&D and production of water-based sports surfacing materials and epoxy resin architectural coatings. We expertly construct various indoor and outdoor athletic venues, commercial spaces, and industrial floors, including the perfect acrylic tennis court. Headquartered in Macau with a specialized factory in Guangzhou, our R&D and production teams bring over 20 years of technical expertise to the industry, utilizing intelligent equipment to continuously improve production efficiency.

Guided by the brand philosophy of “Professionalism, Ultimate Safety, Stability, and Continuous Innovation,” we strictly control every step of our development, design, and manufacturing processes to guarantee superior quality. In 2017, TOPLUS formed a strategic partnership with the national brand Uphos. Our systems not only beautify venues and enhance visual appeal but also optimize court performance, protect athletes, and reduce injury risks.

.

Key Advantages & Features

• Eco-Friendly Materials: Utilizes 100% acrylic paint water based formulas, ensuring a completely odorless and environmentally friendly installation environment.
• Exceptional Durability: Formulated with premium raw materials from global industry leaders (Dow, BASF, Wanhua, Evonik), guaranteeing excellent weatherability and chemical stability for hardcourt tennis courts.

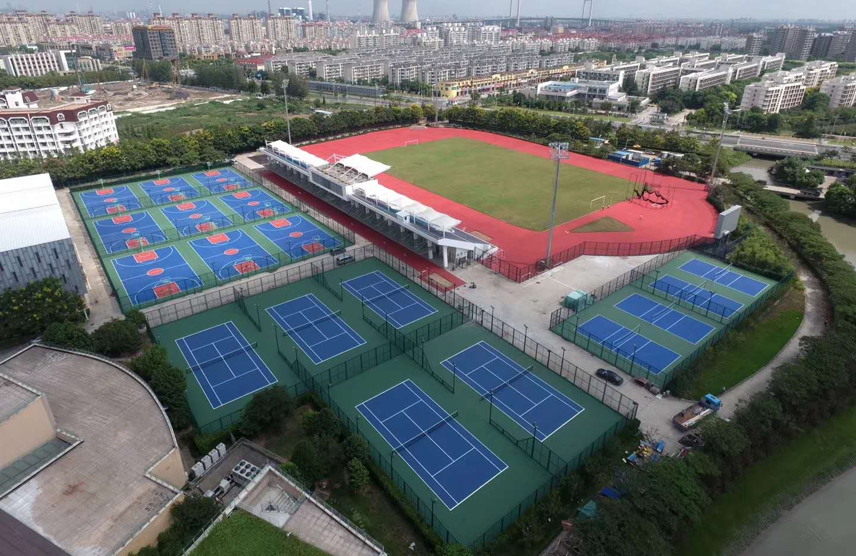

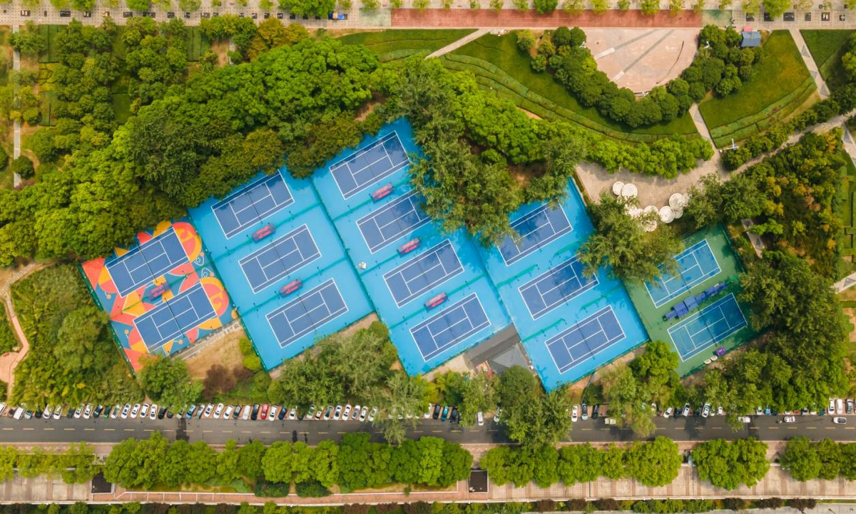

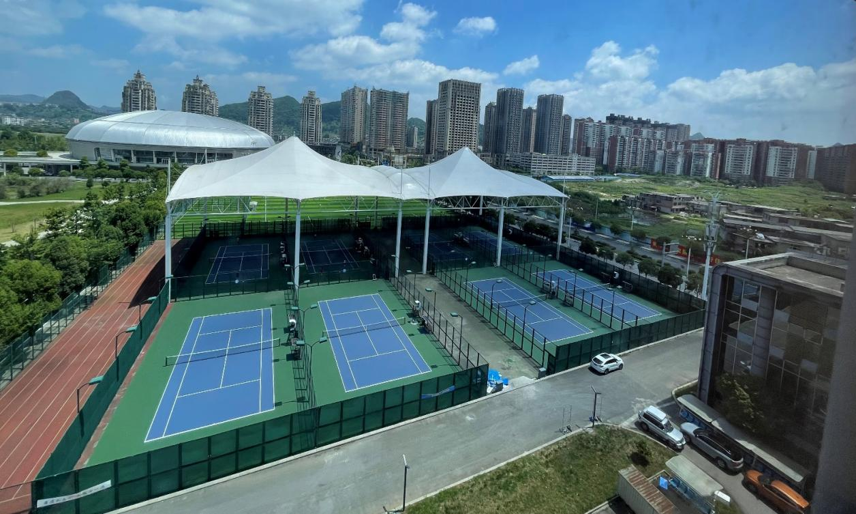

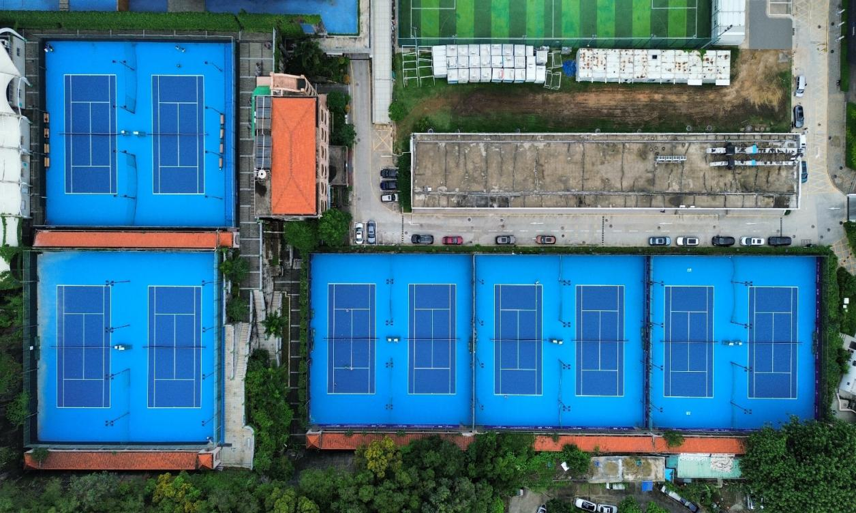

• Extensive Applicability: The TOPLUS product line offers ideal surfacing solutions for a wide range of venues, including tennis, basketball, and badminton courts, as well as public grandstands, roller skating tracks, and urban pedestrian greenways.
• Superior Wear Resistance: Features a high-polymer wear-resistant surface layer combined with precisely graded quartz sand for maximum traction.
• Vibrant Aesthetics: Offers 16 dynamic tennis court colors to customize and elevate the visual appeal of any venue.

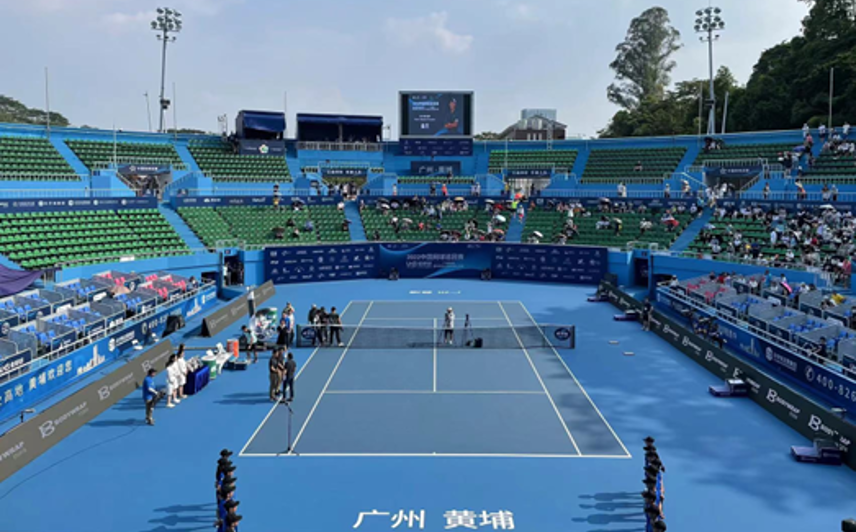

• Certified Quality: Fully certified by the ITF (International Tennis Federation) for court pace, and compliant with ISO, GB/T 22517.7-2018, and GB 36246-2018 standards.

• Efficient Installation: A standard 670 sqm court takes only 6–9 days to complete. The surface can support foot traffic in 3 days and is fully operational in 7 days.

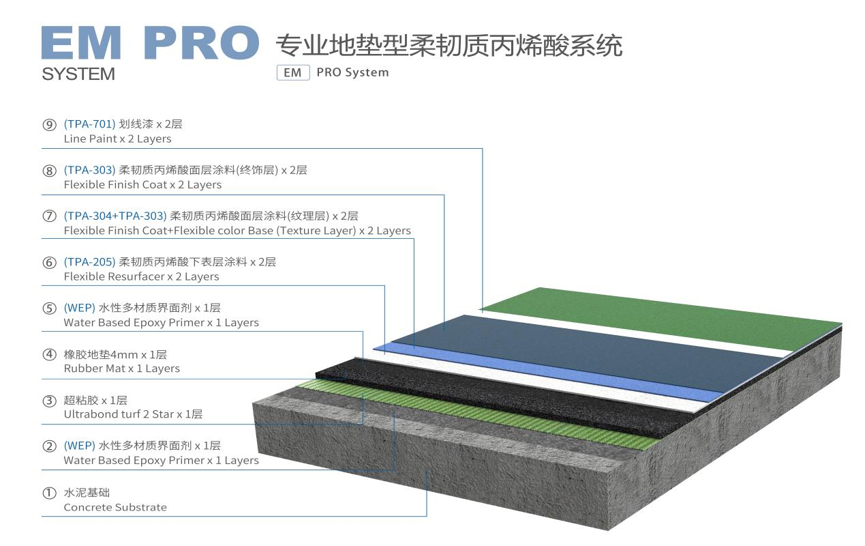

TOPLUS System Structure & Material Coverage

System Layer	TOPLUS Product	Coverage per Coat	Recommended Coats
Elastic Paving Layer	High-Adhesion Binder	1.0 ~ 1.2 kg/m²	1 Coat
Cushion Pad	EPDM Rubber Mat / Roll	Thickness: 4 ~ 10 mm	1 Layer
Primer Layer	WEP Water-Based Multi-Surface Primer	0.06 kg/m²	1 Coat
Intermediate Coat	TPA-205 Flexible Acrylic Base Coat	0.5 kg/m²	2 Coats
Texture Coat	TPA-306 Flexible Acrylic Textured Coat [Sand-Filled]	0.4 kg/m²	2 Coats
Finish Coat	TPA-303 Flexible Acrylic Topcoat	0.2 kg/m²	2 Coats
Line Marking	TPA-701 Acrylic Line Marking Paint	1 Pail per standard court	N/A

Subfloor Application Conditions (Asphalt & Concrete)

Before applying the acrylic paint and primer, both concrete and asphalt foundations must meet the following strict parameters:

• Environment: Subfloor moisture content must be below 8%. Application temperature should range between 15°C and 35°C, with a climate humidity level below 60%.
• Structural Integrity: The base must be flat, solid, and dry, with no loose areas, depressions, or unaddressed damage requiring tennis court crack repair.
• Surface Cleanliness: The foundation must be completely clean and free of debris, cement laitance, loose particles, oil, paint, grease, rubber skid marks, protective wax, or any other substances that could compromise the application.

Completion & Daily Maintenance

• Curing & Usage: Following construction at an ambient temperature of 25°C, the finish coat supports foot traffic after 2 days and allows for full athletic use after 7 days. It is strongly recommended to install safety protection facilities around the newly completed court to prevent malicious damage.
• Site Cleanup: Construction personnel must clear all remaining debris, leftover materials, containers, and wastewater. Under no circumstances should wastewater be discharged into storm drains, to avoid secondary pollution.
• Routine Maintenance: Regular cleaning minimizes dust accumulation, preserves the surface appearance, and extends the venue’s service life. Clean the TOPLUS surface by diluting a 5%-10% neutral or alkaline detergent with water.
