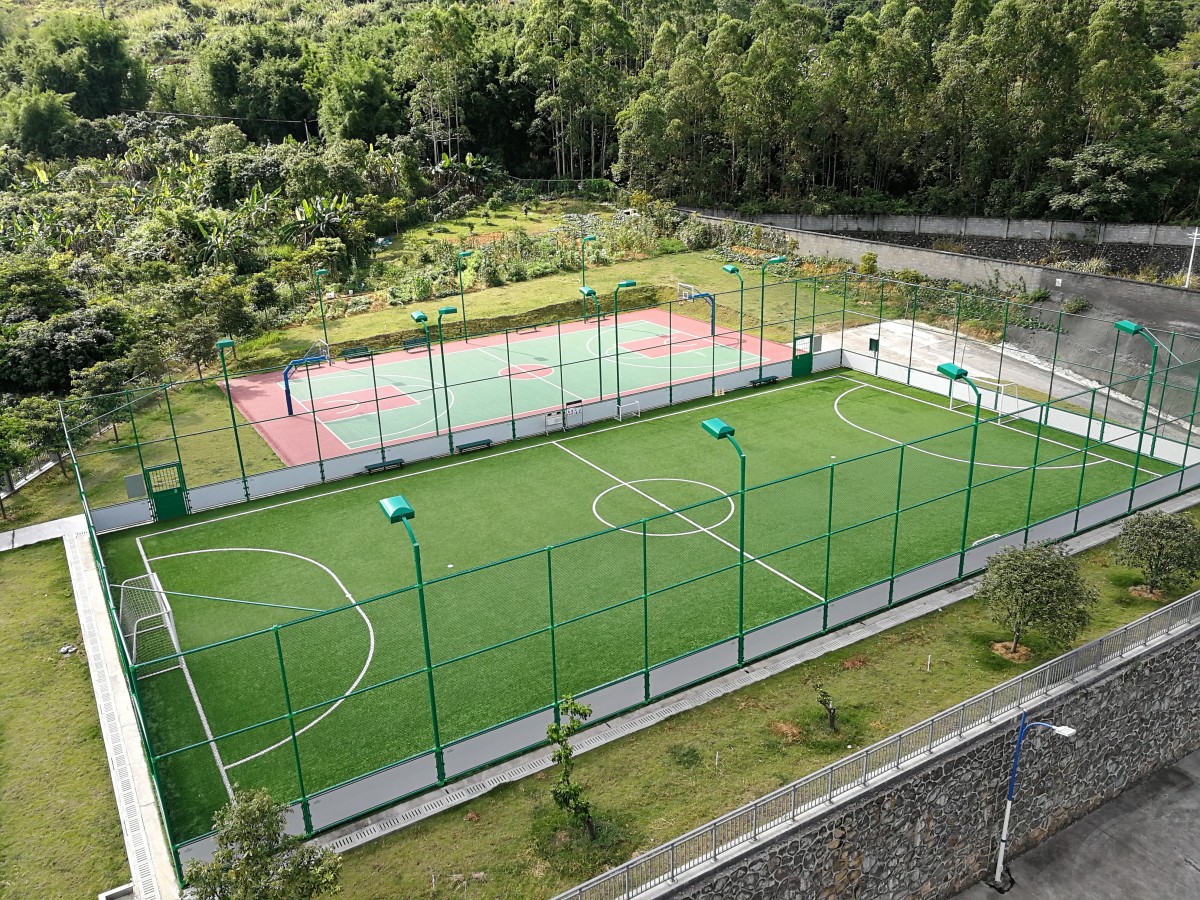

Football Pitch Fencing

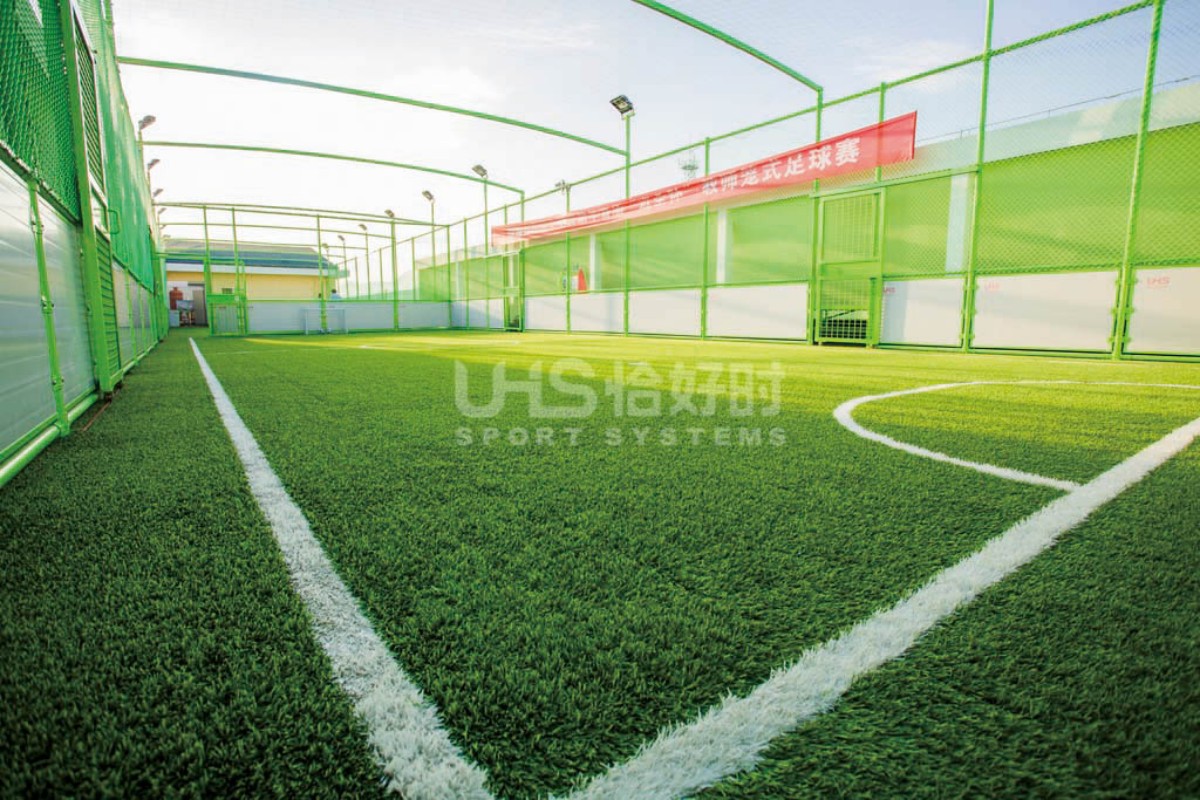

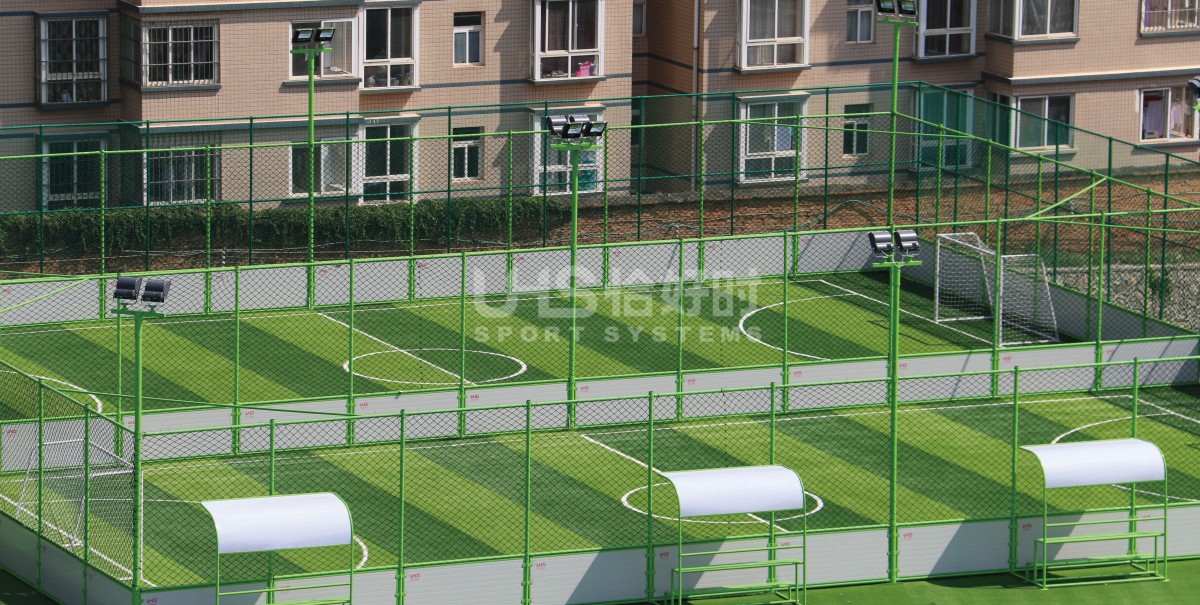

Manufactured directly by a premium composite fence factory, this cage system is engineered for professional football pitch builders. Featuring advanced football field design, it streamlines the construction of football field projects. It is the ultimate, durable solution for any modern soccer pitch or commercial soccer field construction requirement.

Model: UHS-0201

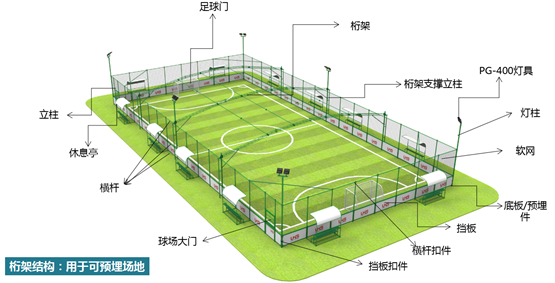

1. Main Frame Specifications

• Material: High-quality national standard steel (Q235) treated with a galvanized protective layer and pure polyester powder coating.
• Dimensions: Total ground fence height is 4000mm; embedded depth is 400mm; total column height is 4400mm.
• Standard Columns: φ76 x 3.0mm.
• Crossbars: φ60 x 2.5mm. Each side of the fence uses three crossbars of this size. The topmost diagonal column rails use φ40 x 2.0mm galvanized pipes.
• Truss Support Columns: Made of φ114 x 3.5mm and φ76 x 3.0mm galvanized pipes. The truss height from the ground is 5 meters.

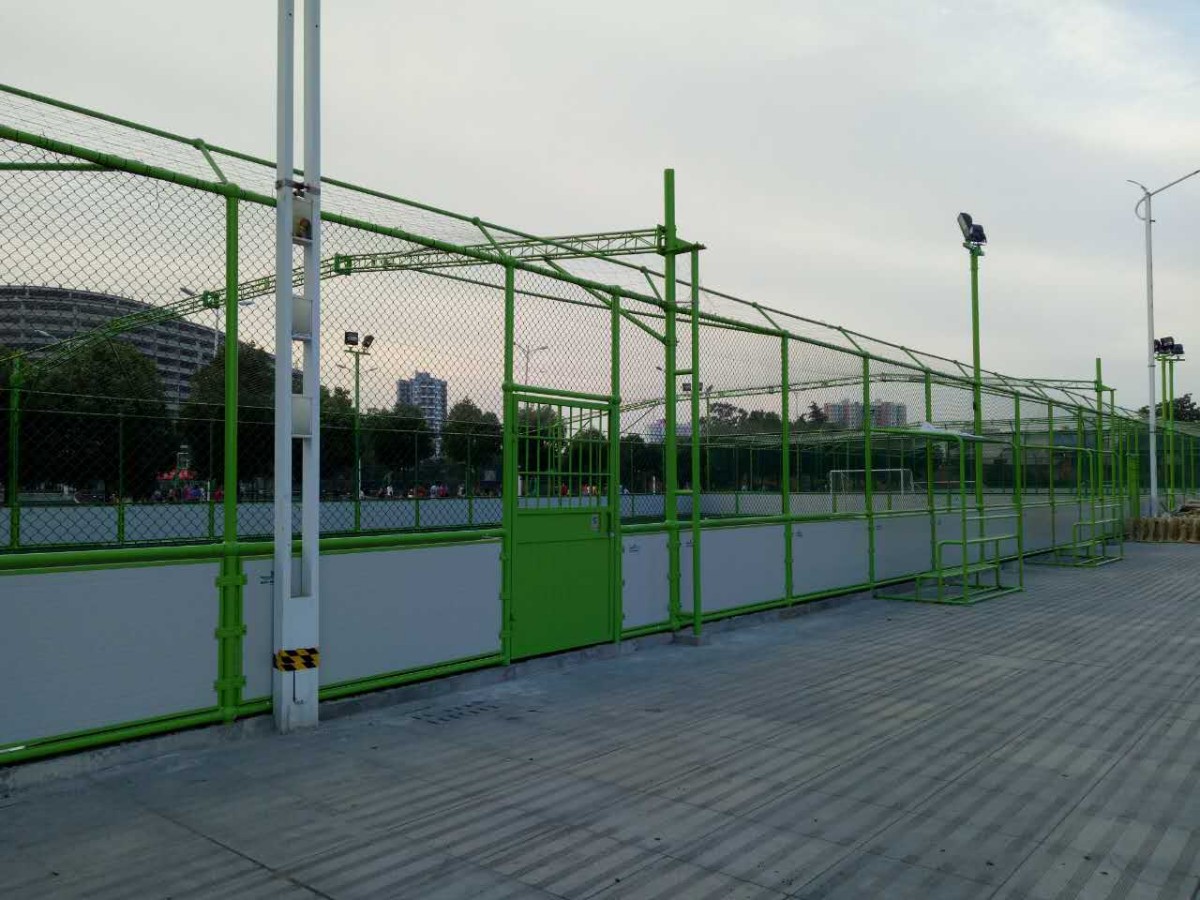

• Structure: The lower 1.2m consists of zinc composite boards, while the upper 2.8m features an isolating PE soft net.
• Post Spacing: 2.5m.
• Installation Method: Direct insertion embedding.
• Color Options: Dark Green or Apple Green.

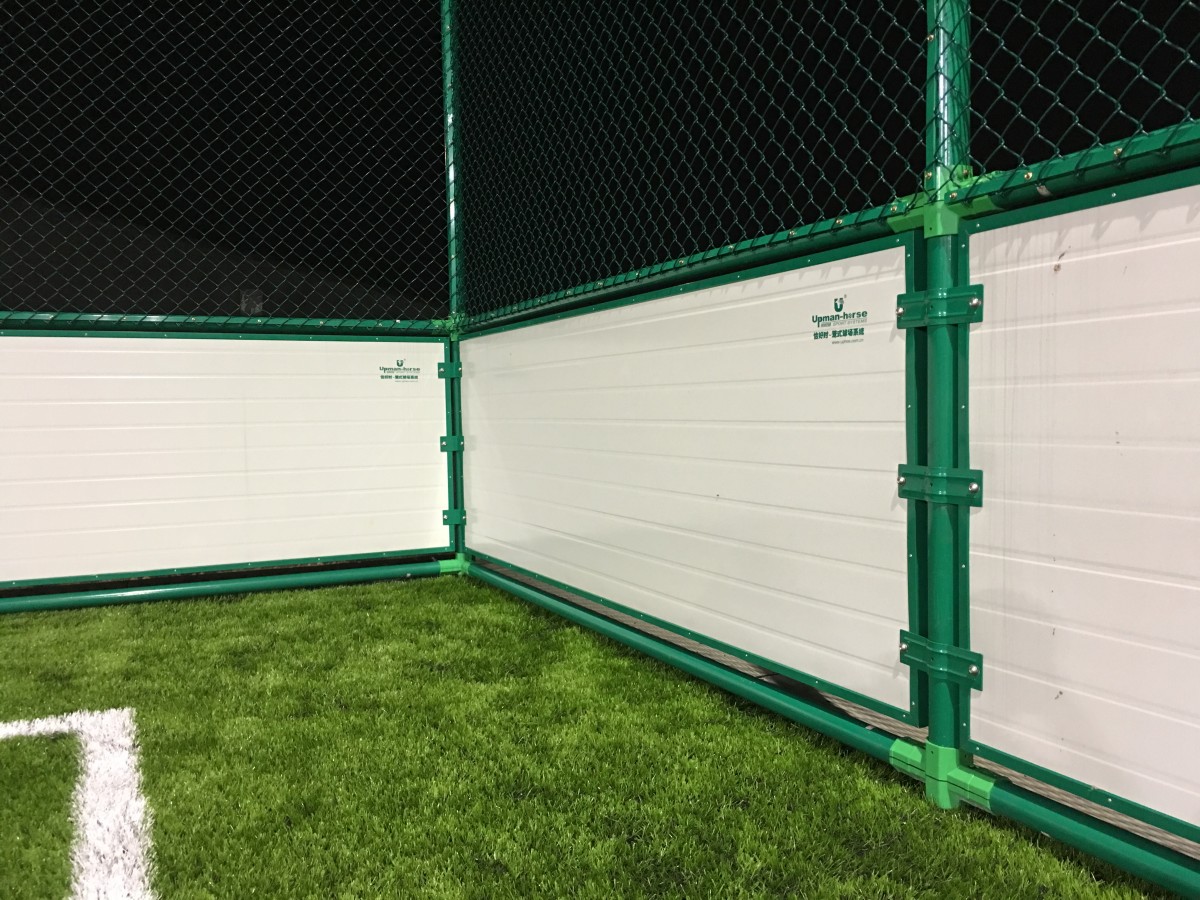

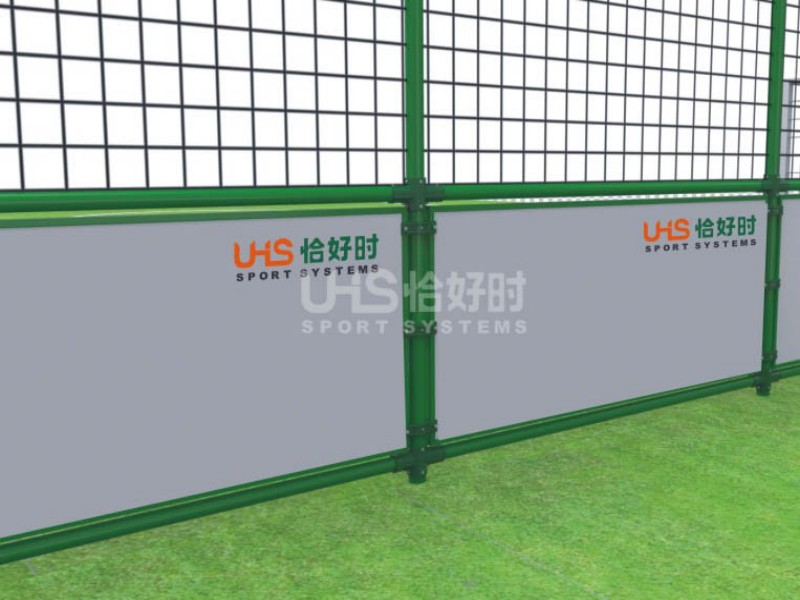

1.1 Lower Section: 1.2m Zinc Composite Boards

• Gameplay Enhancement: Designed to match cage court rules, allowing balls to bounce off the boards for tactical passing and increased gameplay fun.

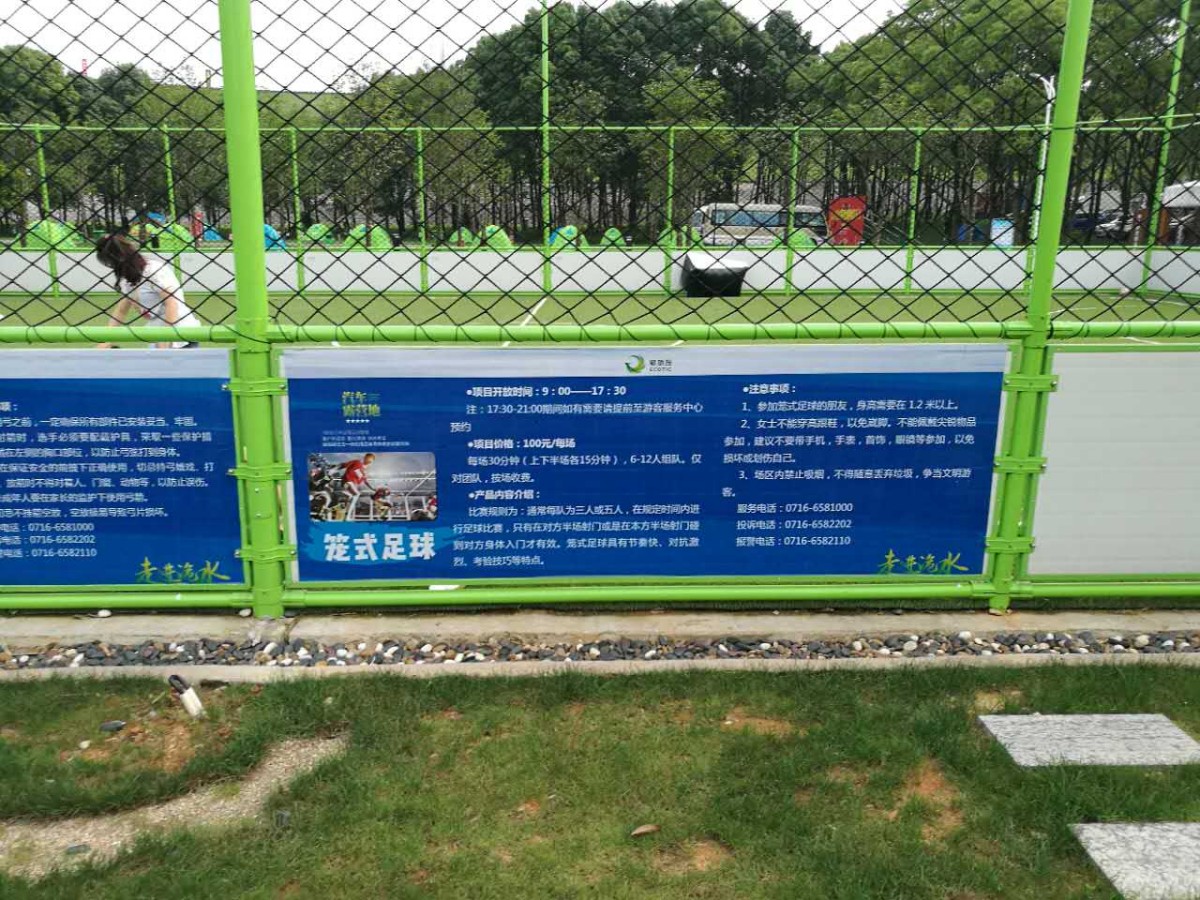

• Monetization: Boards serve as premium advertising space, generating commercial revenue and reducing operational costs.

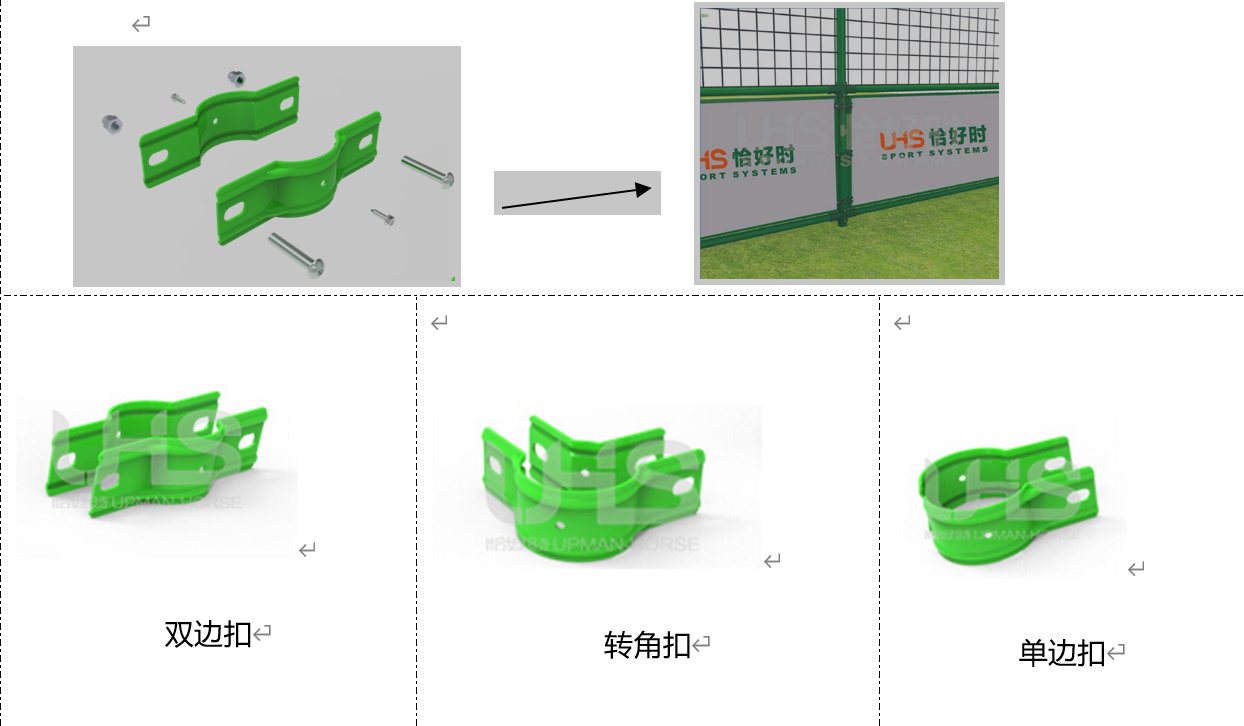

• Dimensions & Build: Height from the ground to the top of the frame is 1.2m. The zinc alloy composite board frame measures 950mm (H) x 50mm (Thickness). All four edges are wrapped in protective aluminum profiles. They are installed on both sides of a reinforced base using a secure slot connection (fasteners as illustrated).

1.2 Upper Section: 2.8m Soft Netting

• Net Specs: Utilizes 6mm diameter PE black knotless woven netting with a 100 x 100mm mesh size.

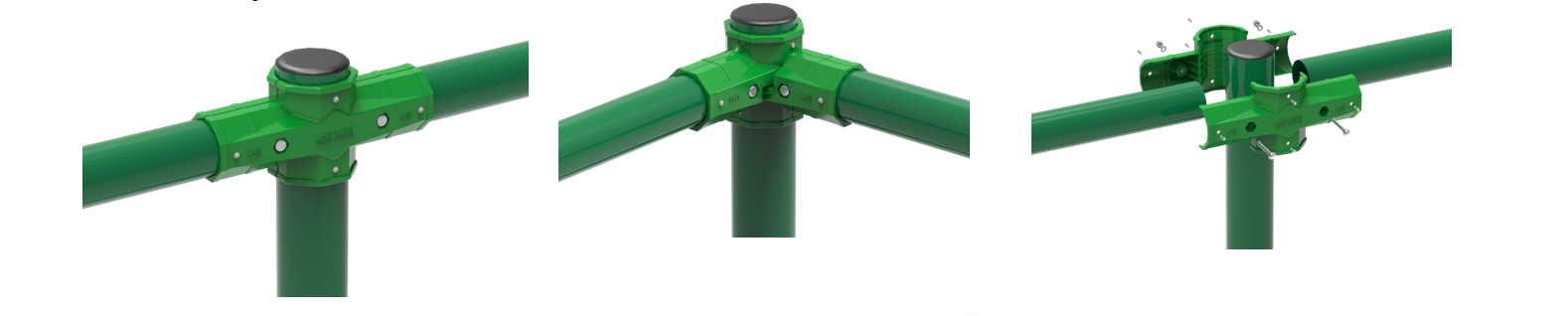

• Connections: Crossbars and columns are connected using precision-cast alloy cross fasteners. The soft net is secured between the crossbars and columns via robust steel wire ropes.

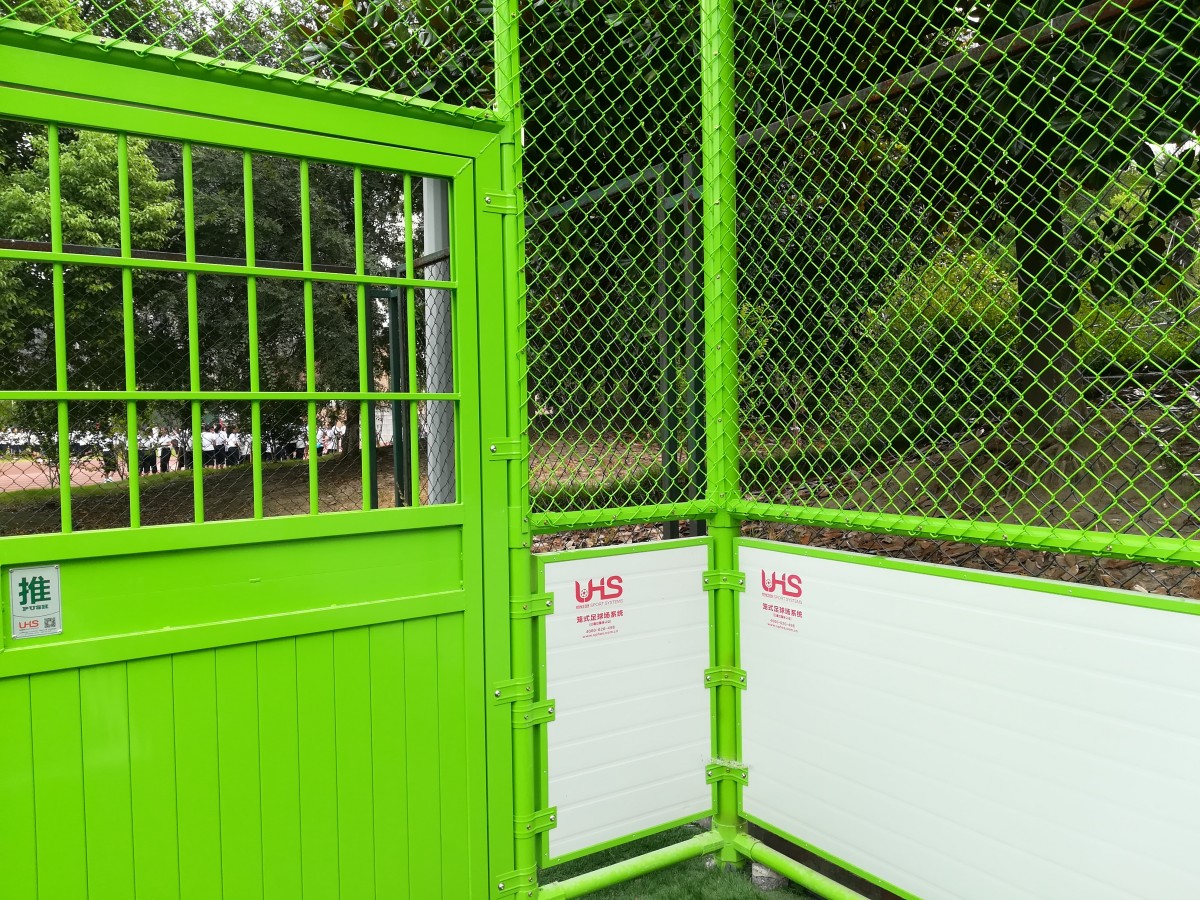

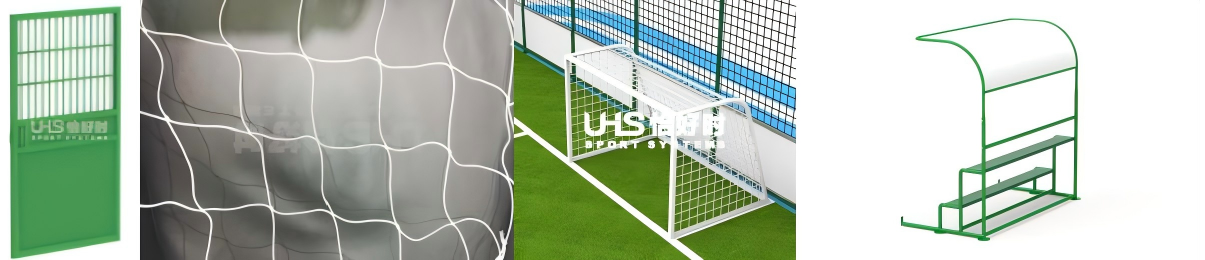

2. Court Gates

• Material: Aluminum columns and grilles serve as the main body, framed with high-strength aluminum profiles.
• Dimensions: Clearance height of 2330mm and clearance width of 1400mm.
• Quantity: 2 gates.

3. Light Poles

• Material: The lower section of all light poles and corner columns use φ114 x 3.5mm galvanized pipes.
• Total Height: 7 meters.

4. Lighting Fixtures

• Optional add-on (Customizable based on site requirements).

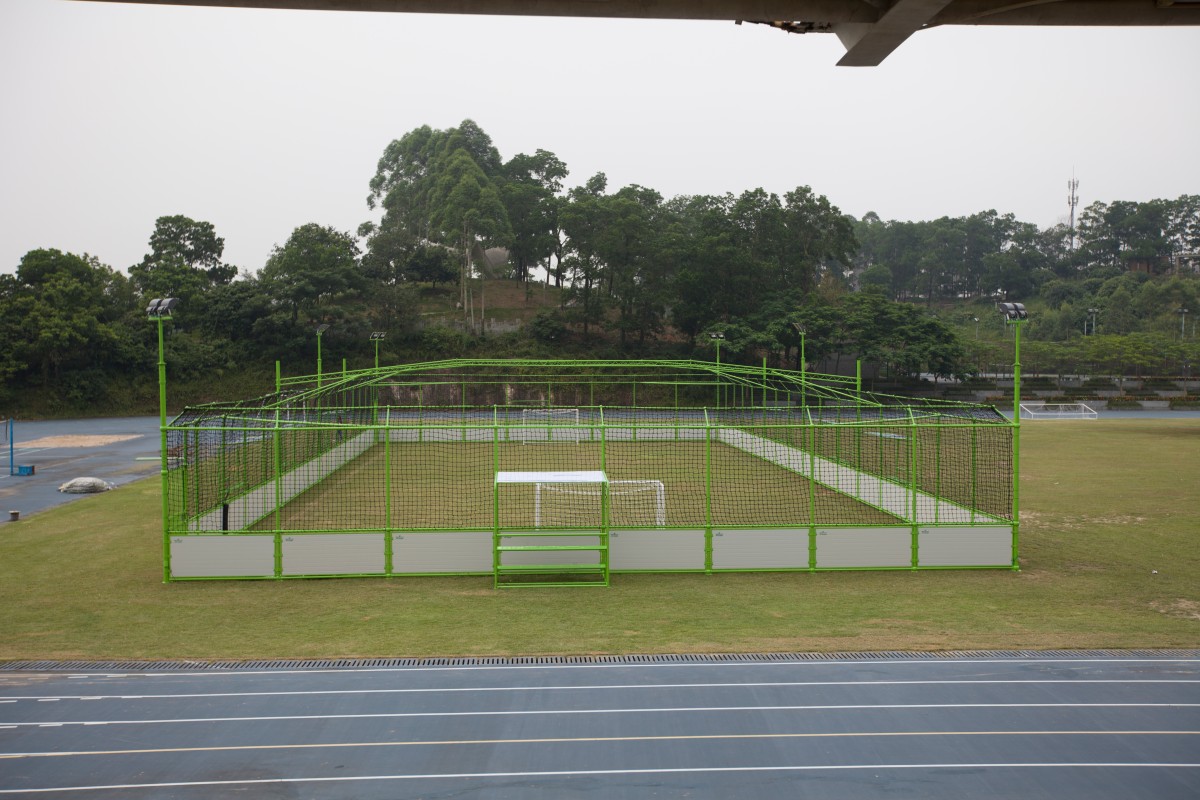

5. Steel Truss System

• Structure: The main body features Φ32 x 2.0mm cross-welded steel pipes. Welded sleeves on both sides fit securely over the support columns to reinforce the cage’s overall rigidity and support the top netting.
• Dimensions: Height from the ground is 5 meters.
• Quantity: 3 sets.

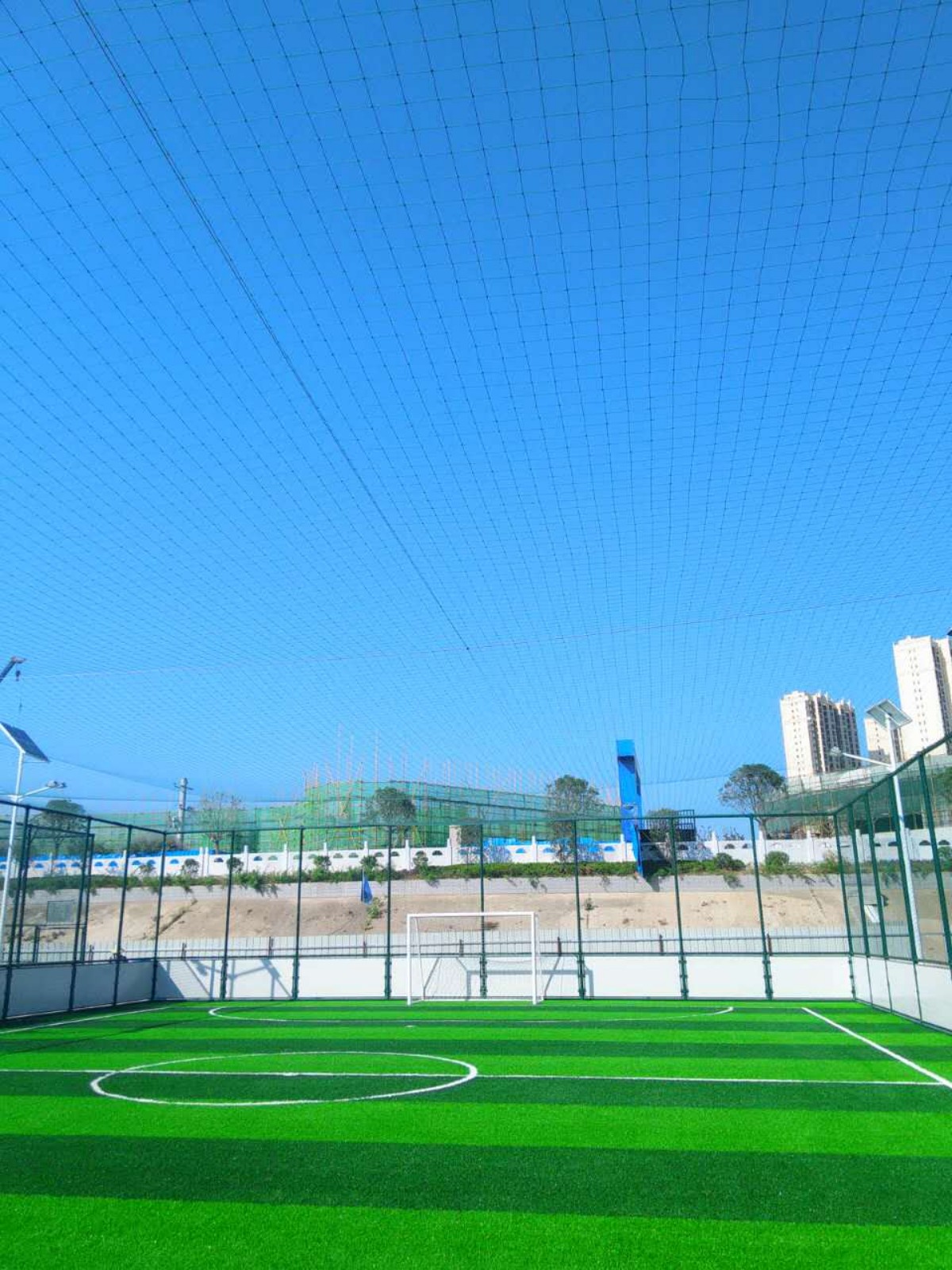

6. Top Soft Netting

• Specs: 2.0mm diameter PE white knotted woven netting with a 150 x 150mm mesh size.

7. Soccer Goals

• Dimensions: Inner clearance of 2m (H) x 3m (W) x 1.5m (D).
• Material: The front side and top goalposts use ∅76 x 3.0mm galvanized steel pipes; rear brackets use ∅48 x 2.0mm galvanized steel pipes.
• Netting: Equipped with a white PE net (3mm diameter, 100 x 100mm mesh).
• Quantity: 2 sets.

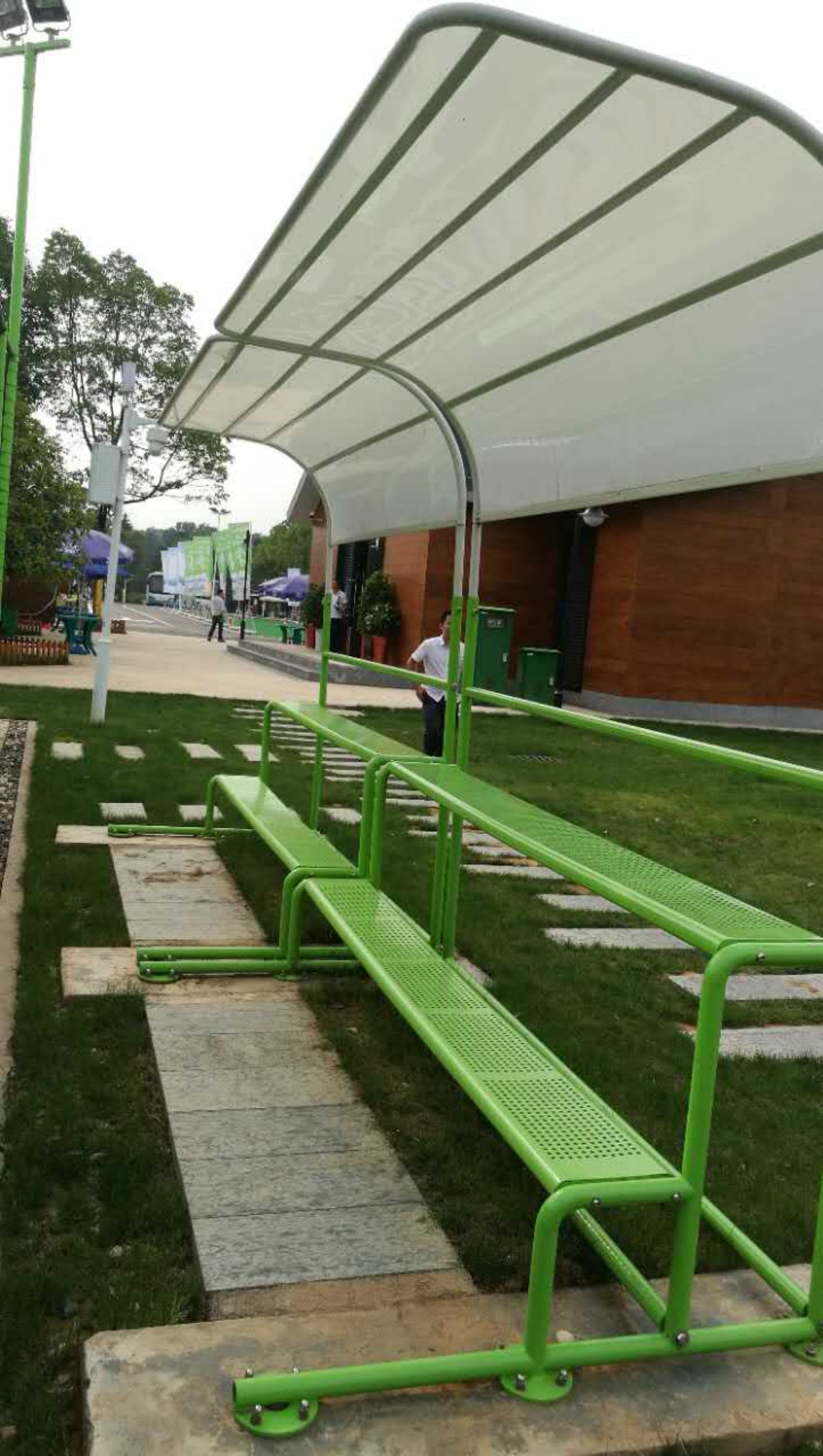

8. Resting Bench/ Shelters

• Dimensions: 2.5m (H) x 2.5m (L) x 1.3m (W).
• Accessories: Each booth includes one long bench (2500mm (L) x 280mm (W) x 900mm (H)) and a PVC sunshade board.
• Quantity: 10 sets.
