Football Pitch Fencing

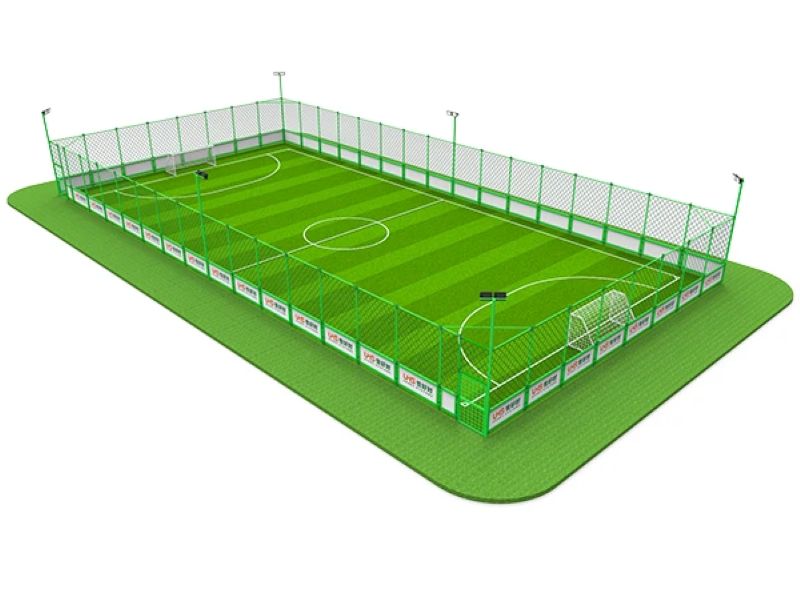

As an expert soccer field construction company, we deliver premium football field construction and football pitch construction solutions. Designed to perfectly complement artificial pitches in football, this cage system streamlines the construction of football field projects and is the ultimate choice for your next soccer pitch construction.

Model: UHS-0203

1. Main Frame Specifications

• Material: High-quality national standard steel (Q235) featuring a galvanized protective layer and pure polyester powder coating.
• Dimensions: Total ground fence height is 4000mm, embedded depth is 400mm, and total column height is 4400mm.
• Columns: φ76 x 3.0mm.
• Crossbars: φ60 x 2.5mm. Each side of the fence utilizes three φ60 x 2.5mm galvanized steel crossbars. The topmost diagonal column rails are fitted with φ40 x 2.0mm galvanized pipes.
• Truss Support Columns: Constructed from φ114 x 3.5mm and φ76 x 3.0mm galvanized pipes. The truss height from the ground is 5 meters.

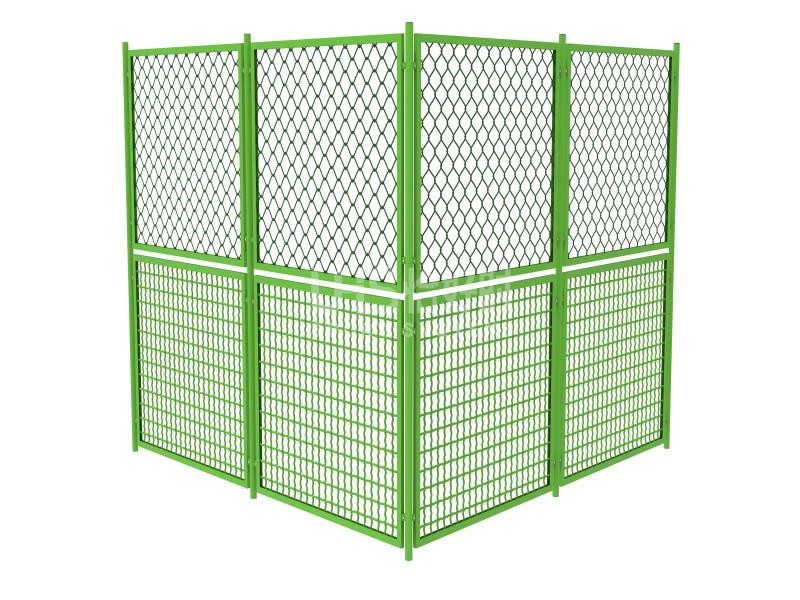

• Structure: The lower 2 meters consist of wave mesh, while the upper 2 meters feature a UHS-1008 precision-cast alloy cross fastener assembled fence.
• Post Spacing: 2.5m.
• Installation Method: Direct insertion embedding.
• Color Options: Dark Green or Apple Green.

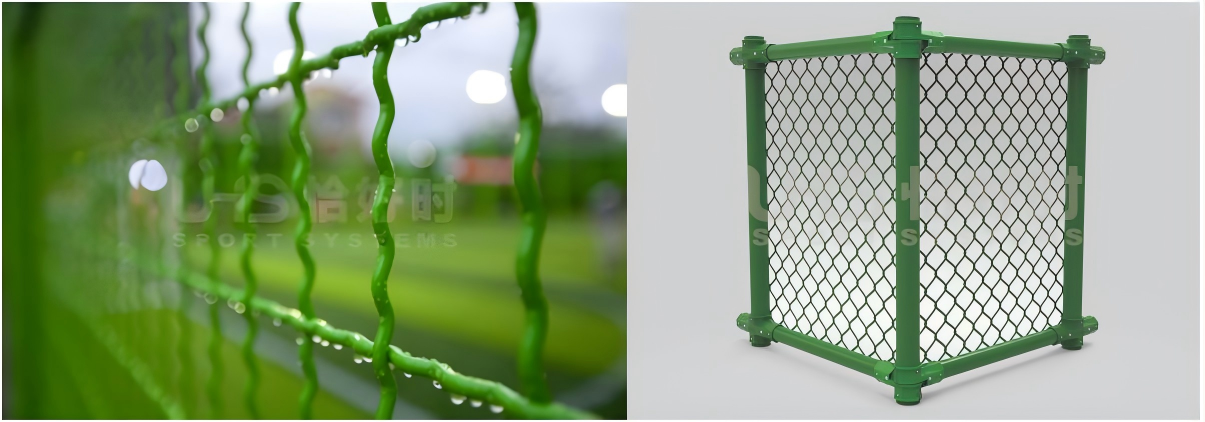

1.1 Lower Section: 2m Wave Mesh Specifications

• Process: Galvanized pipe treatment with a pure polyester outdoor powder coating surface for double rust protection.
• Material: Wave mesh assembled within a steel frame. The wave mesh wire diameter is 6mm, with a mesh size of 60 x 120mm (±3mm).

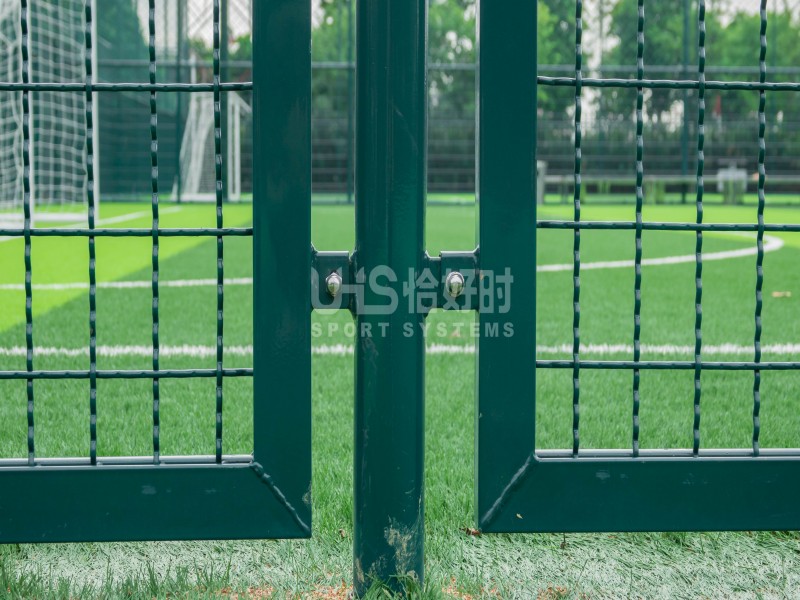

• Connection: Utilizes a new N-shaped ear connection, ensuring structural stability, easy installation, and strong impact resistance.

1.2 Upper Section: 2m UHS-1008 Precision-Cast Alloy Cross Fastener Assembled Fence

• Process: Galvanized pipe treatment with a pure polyester outdoor powder coating surface for double rust protection.

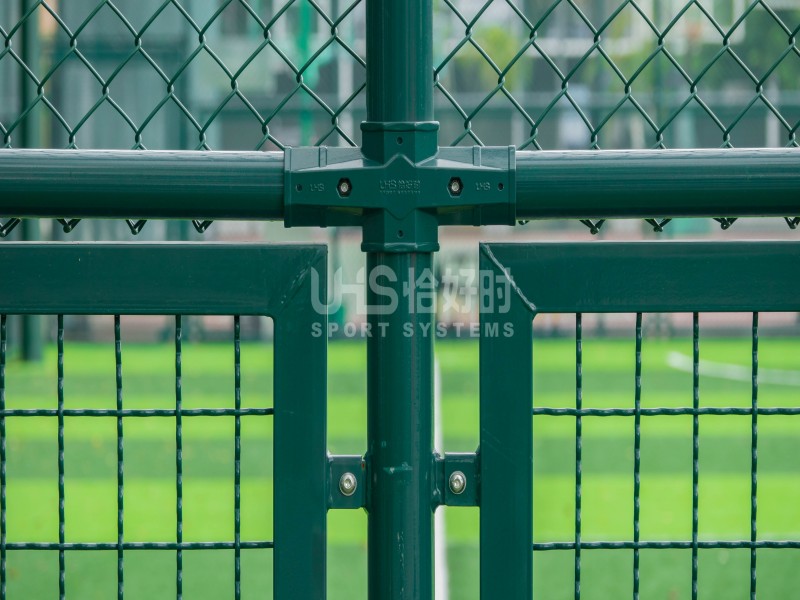

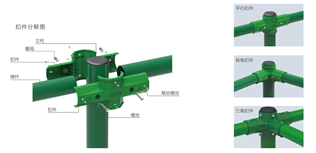

• Fasteners: Uses cast aluminum fasteners installed in a front-and-back combination to connect the steel pipes. The fastener consists of two symmetrical arc-shaped covers featuring arc grooves, double reinforcing ribs, and an integrated diamond-shaped boss on the inner surface. This tightly secures the crossbar without rotation, ensuring easy installation and adjustment. Fastener wall thickness is 3.0mm.
• Fence Wire Diameter: 2.3 / 3.6 / 45mm.
• Flat Aluminum Profile: 20mm (W) x 4mm (Thickness).

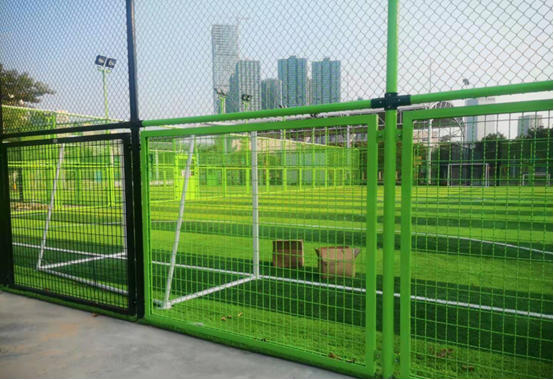

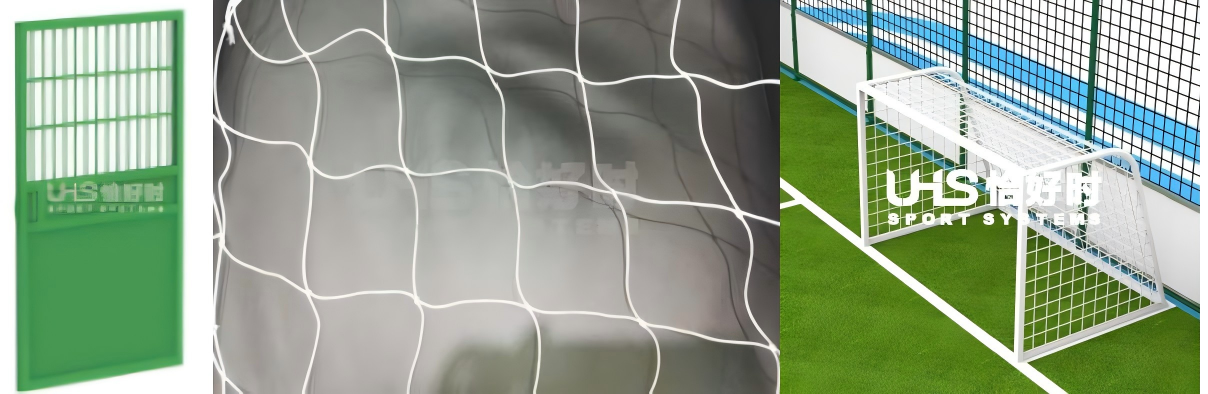

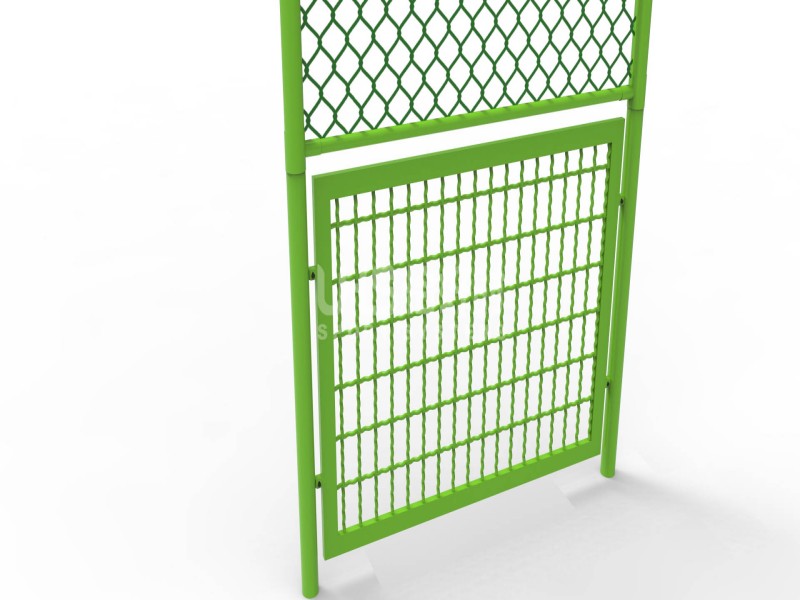

2. Court Gates

• Material & Dimensions: Features aluminum columns and grilles as the main body, framed with high-strength aluminum profiles. The gate clearance height is 2330mm and clearance width is 1400mm.
• Quantity: 2 gates.

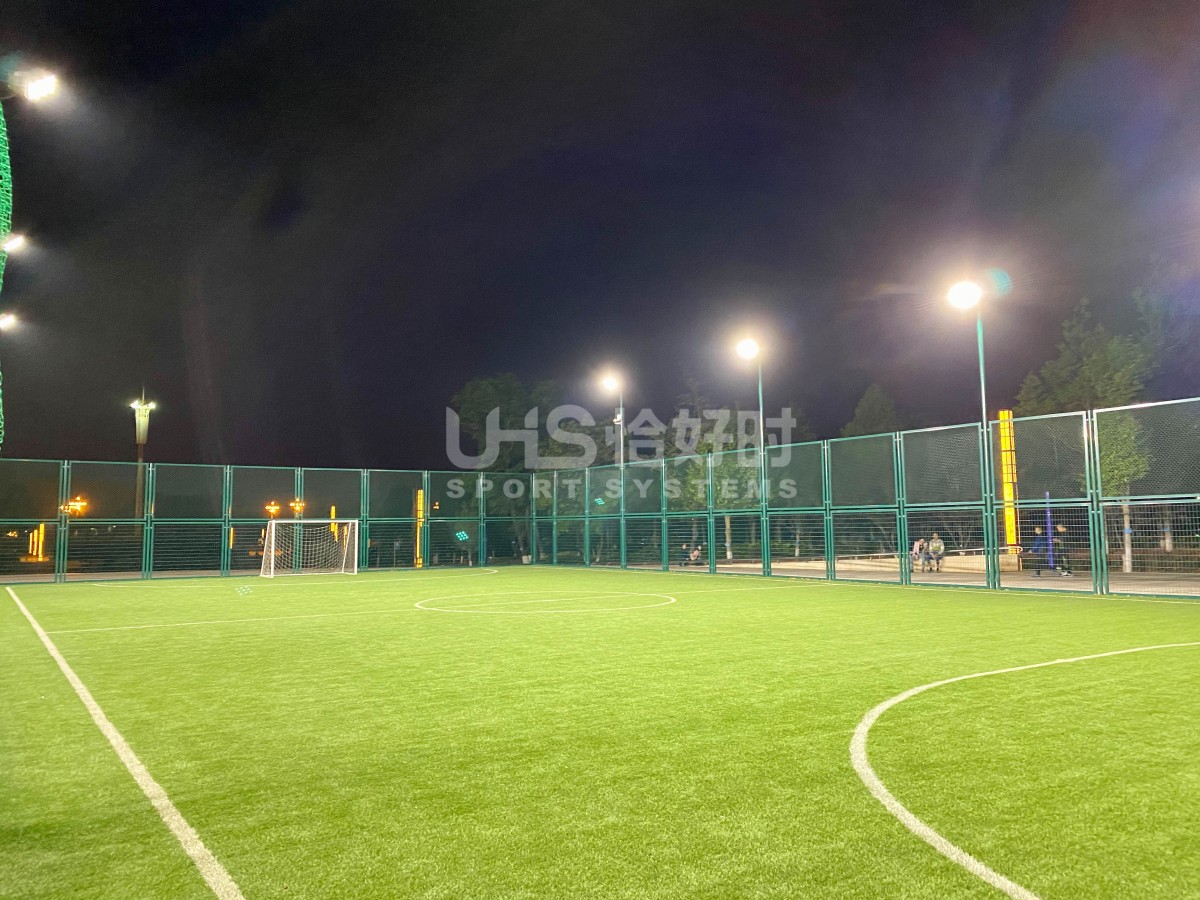

3. Light Poles

• Specifications: The lower section of all light poles and corner columns use φ114 x 3.5mm galvanized pipes. The total pole height is 6 to 8 meters.

4. Lighting Fixtures

• Optional add-on.

5. Steel Truss System

• Structure: The main body features Φ32 x 2.0mm cross-welded steel pipes. Welded sleeves on both left and right sides fit securely over the support columns to reinforce the overall cage rigidity and provide support for the top netting.
• Dimensions & Quantity: The truss height from the ground is 5 meters. Quantity is 3 sets.

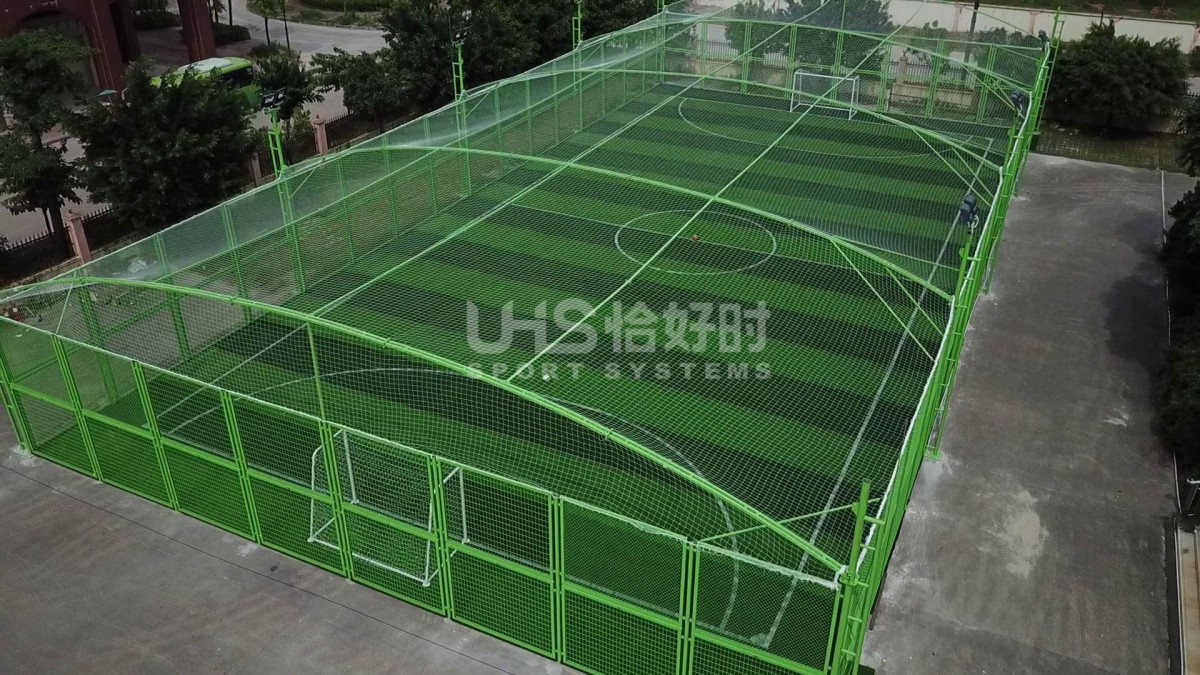

6. Top Soft Netting

• Specifications: Uses 2.0mm diameter PE white knotted woven netting with a 150 x 150mm mesh size.

7. Soccer Goals

• Dimensions: Inner clearance is 2m (H) x 3m (W) x 1.5m (D).
• Material: The front sides and top goalposts use ∅76 x 3.0mm galvanized steel pipes. The rear brackets use ∅48 x 2.0mm galvanized steel pipes.
• Netting & Quantity: Equipped with a white PE net (3mm wire diameter, 100 x 100mm mesh size). Quantity is 2 sets.
