Tennis Court Lighting

As one of the premier led light manufacturers, we specialize in advanced lighting system solutions, delivering high-performance sports lighting and an elite outdoor lighting system tailored for professional sport court lighting applications.

Key Specifications & Configuration

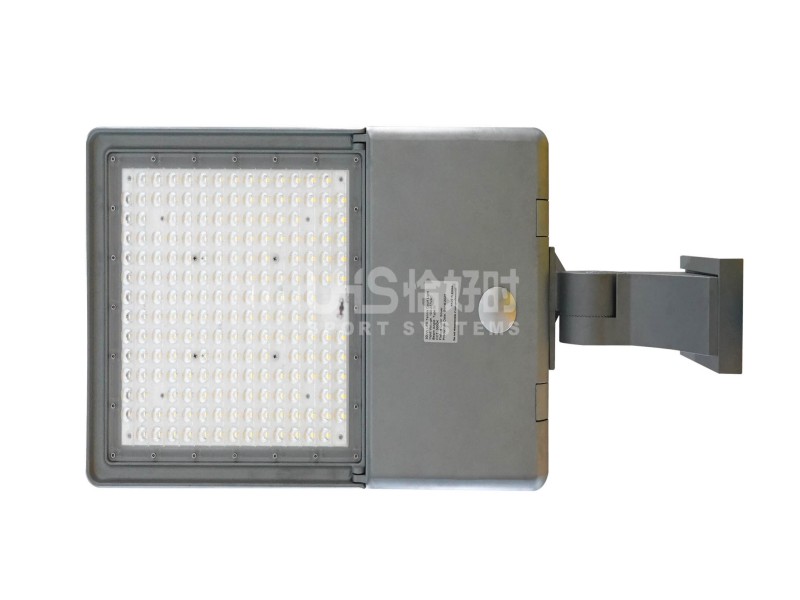

• Product Model: LTC-300/420W Professional Sports Court Light
• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 300W / 420W
• Power Factor: >0.98, featuring a built-in power supply with an instant-start function for high efficiency, safety, and reliability.
• Light Source: Lumileds 5050 LED
• Luminous Efficacy: Up to 160 lm/W high-efficiency output utilizing an integrated PC lens, matrix arrangement, and an anti-glare grid net design.
• Color Rendering Index (CRI): Customizable (CRI 70–90 optional to ensure athletes and the ball are clearly visible on the court).
• Color Temperature: Customizable color temperature.

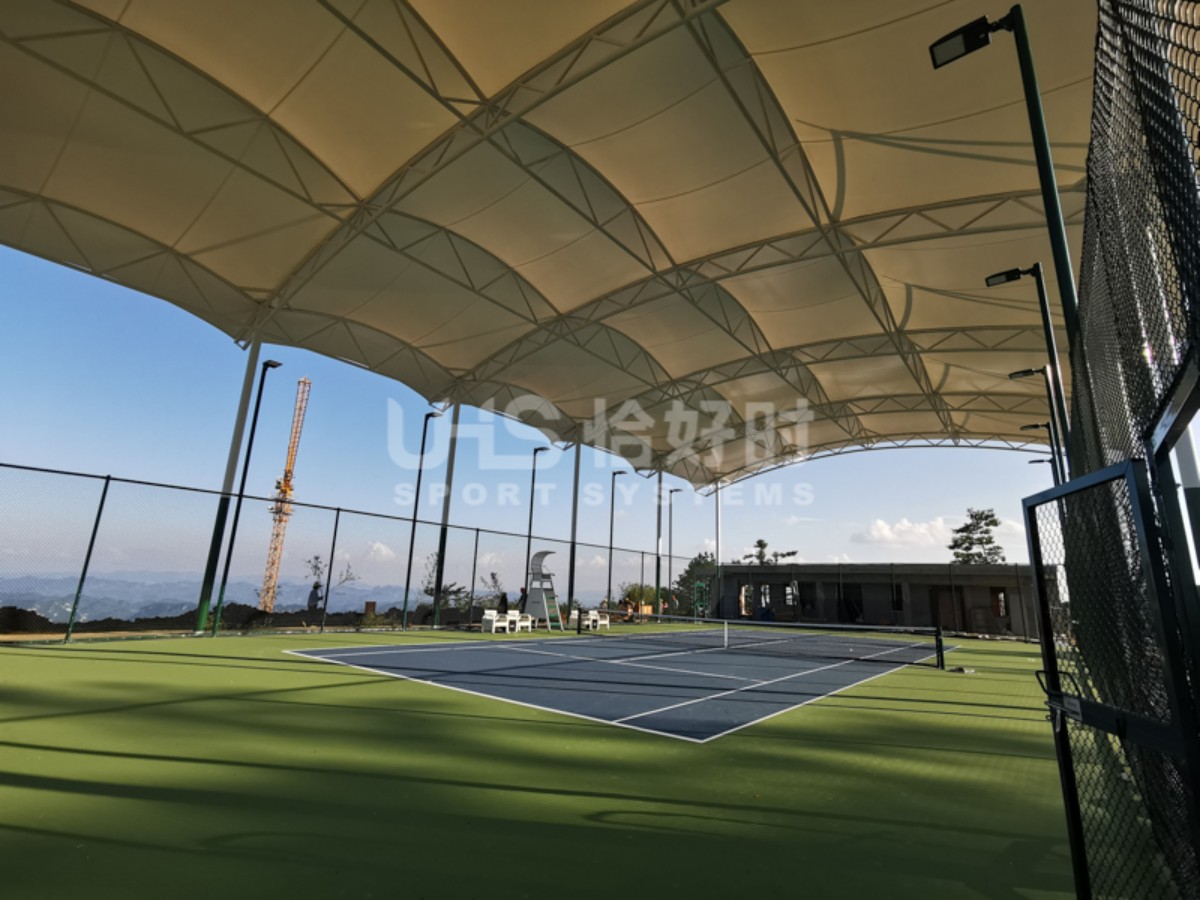

• Light Distribution: Three or more optical distribution options. Professional light distribution is specifically tailored for dual-side lighting arrangements on outdoor tennis courts, effectively improving light utilization and minimizing spill light.
• IP Rating: IP66 protection level, combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety.
• Dimensions: 739 mm × 360 mm × 75 mm
• Fixture Weight: 10.5 kg

Material & Craftsmanship

• Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, offering excellent high-temperature resistance, weather resistance, and rich color choices.
• Electrical Design: Features a hinged power supply sealing cover design for easy maintenance and reliable operation.

Functional Highlights & Design

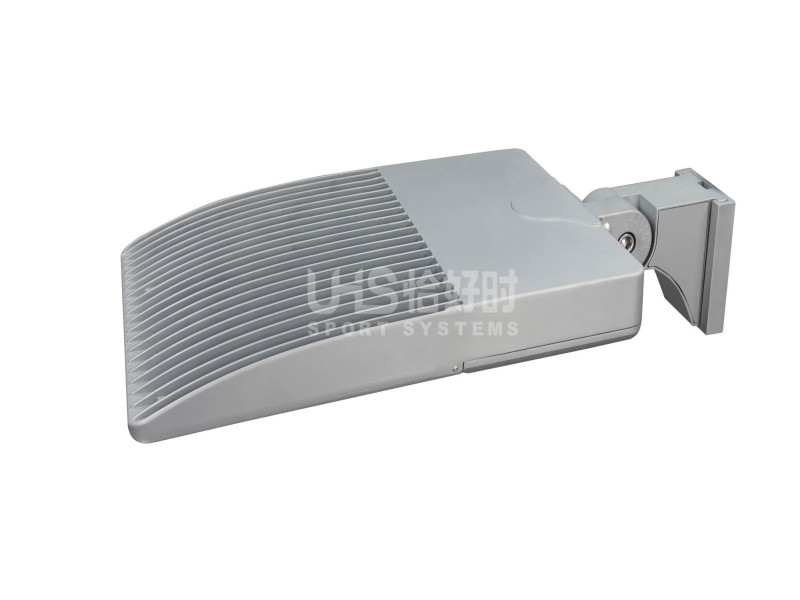

• Lightweight & Integrated Body: Features an integrated molding lamp body that is both aesthetic and professional.
• Advanced Thermal Management: The backside utilizes a fin-type heat dissipation structure to deliver exceptional thermal performance.

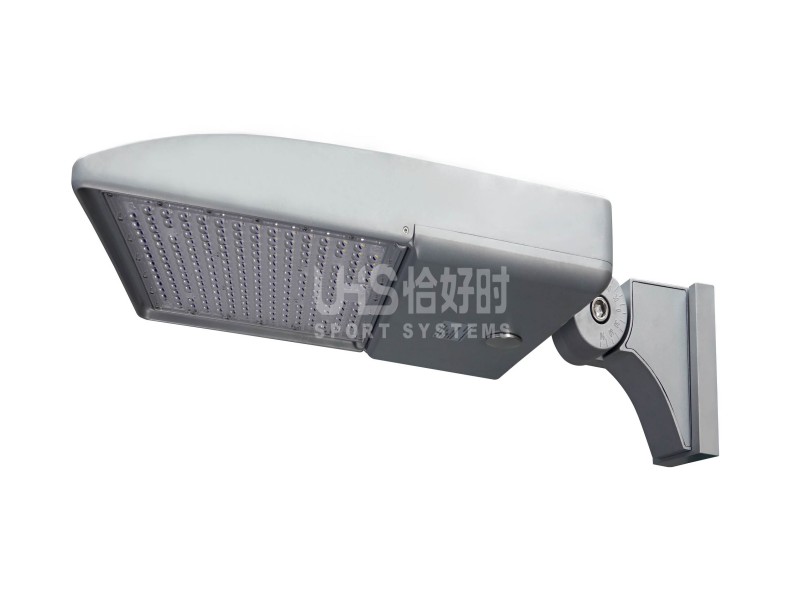

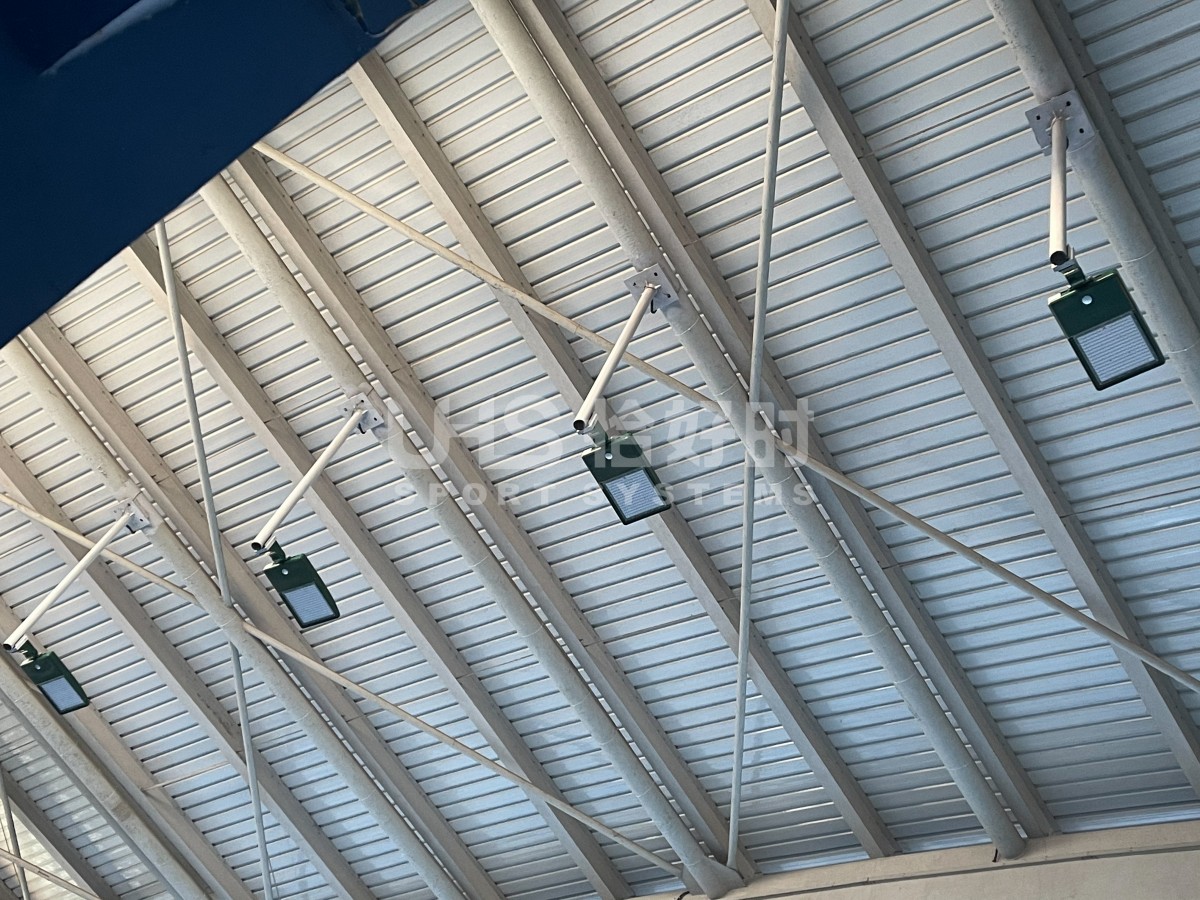

• Flexible Installation Brackets: Available with both fixed-angle and adjustable-angle bracket options. The adjustable bracket includes clear scale markings, allowing for flexible projection angle adjustments in any direction.

Applications

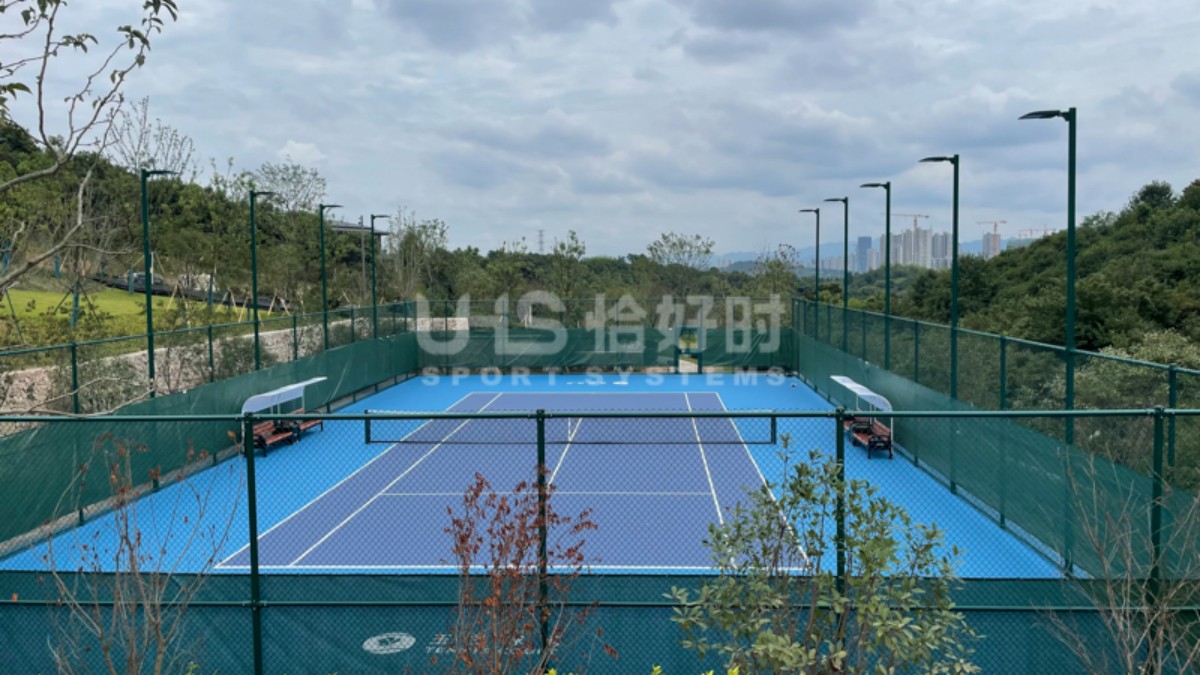

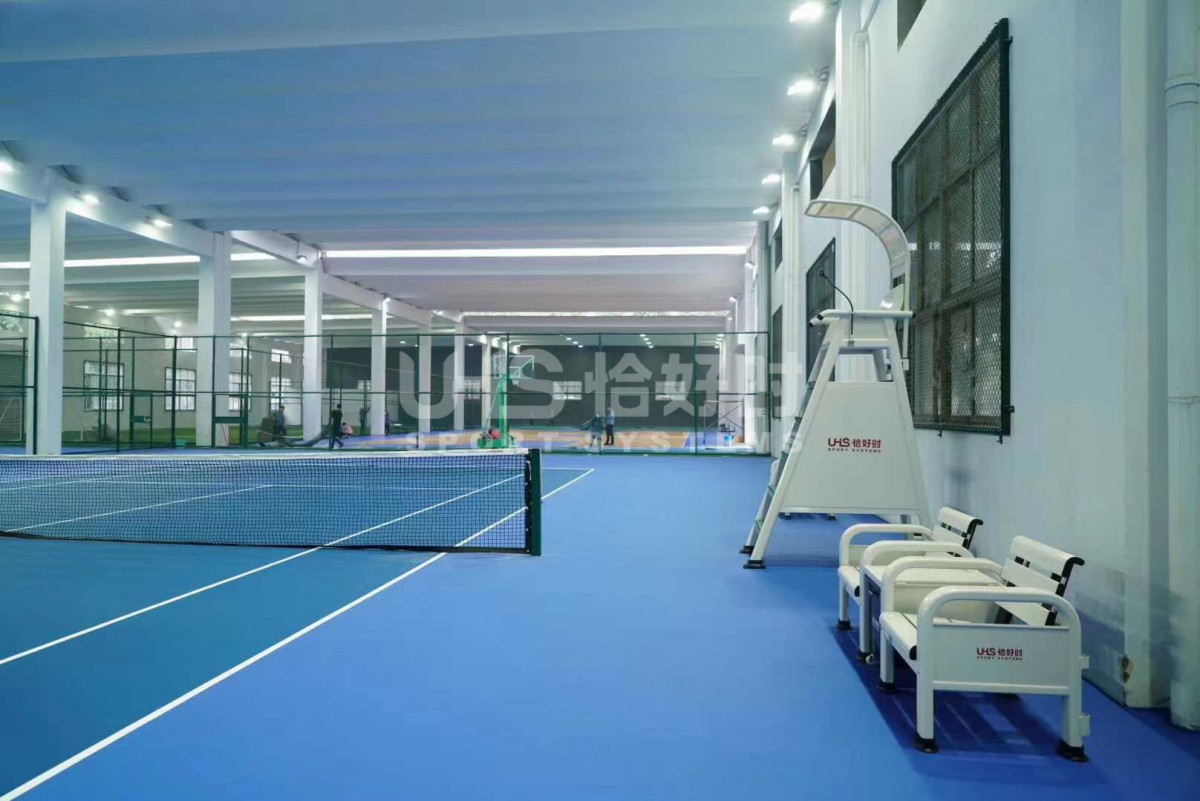

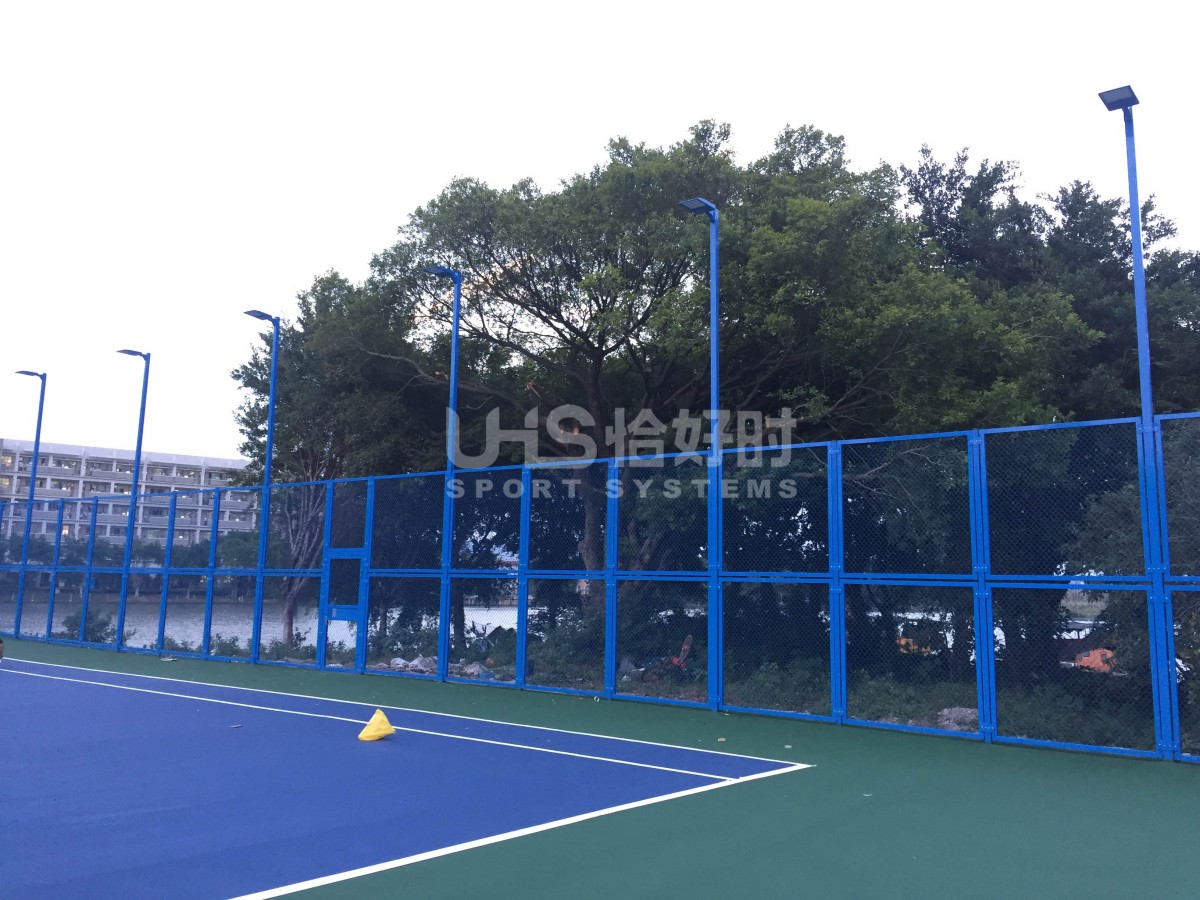

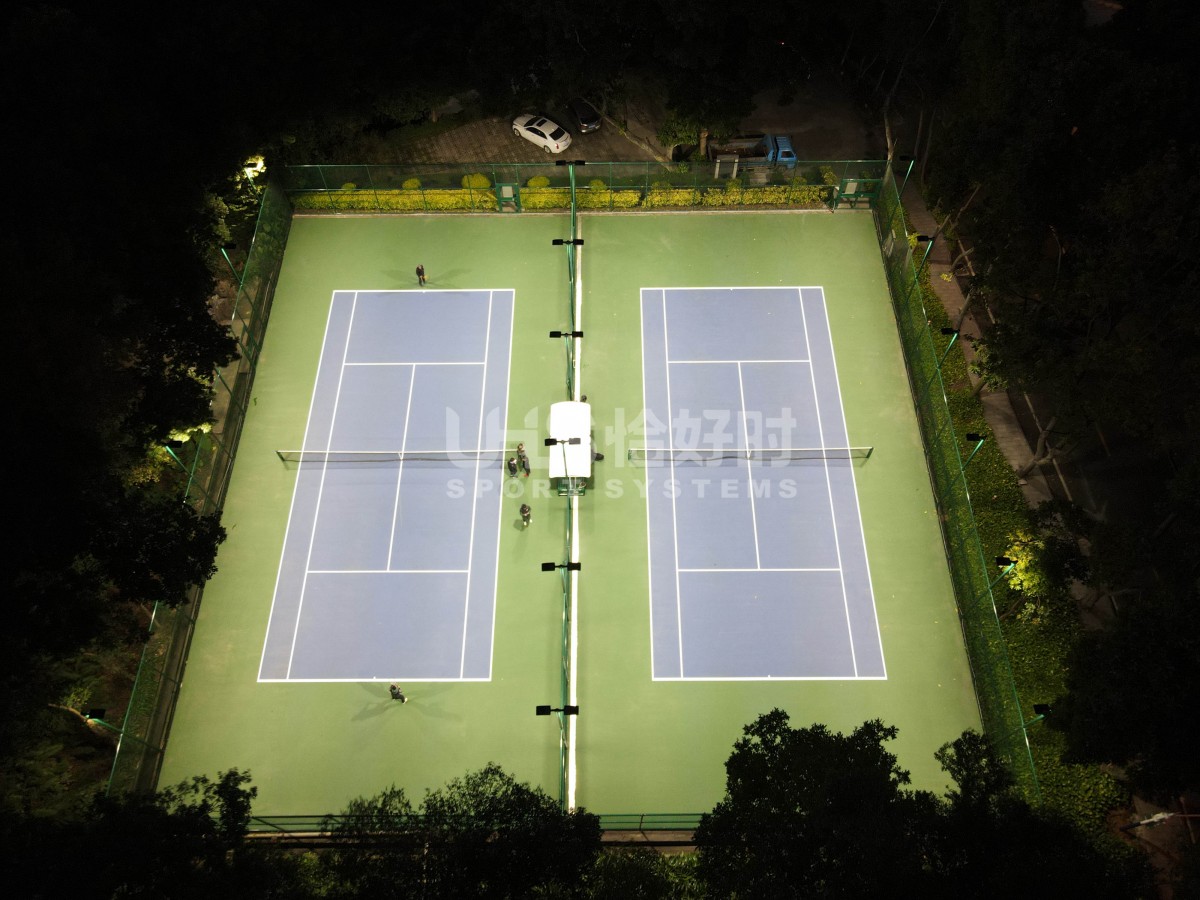

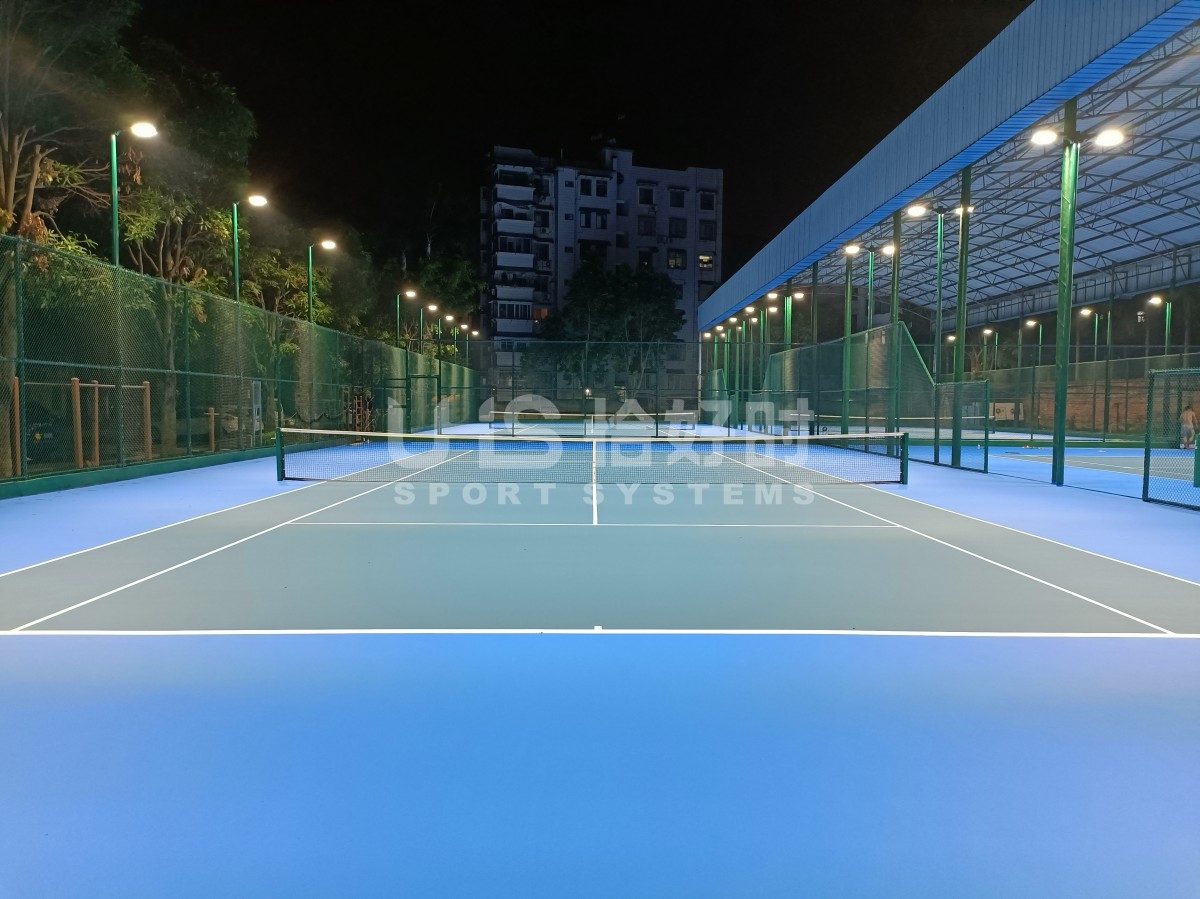

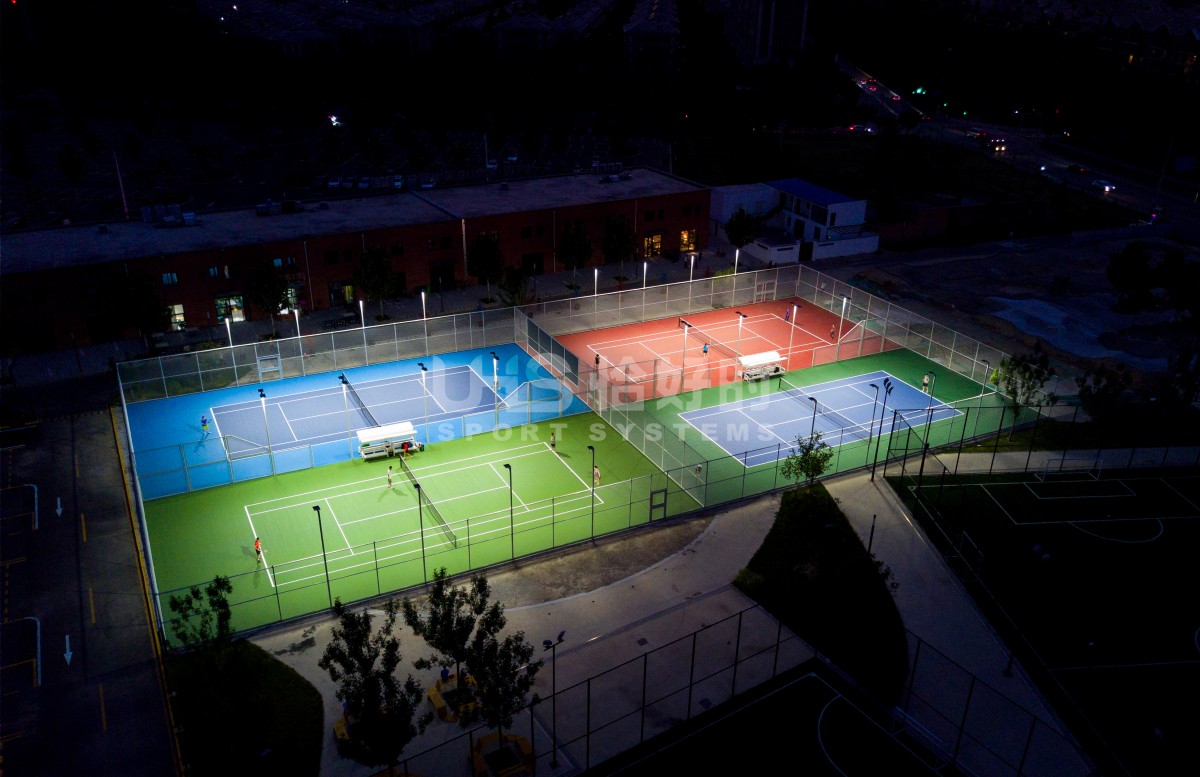

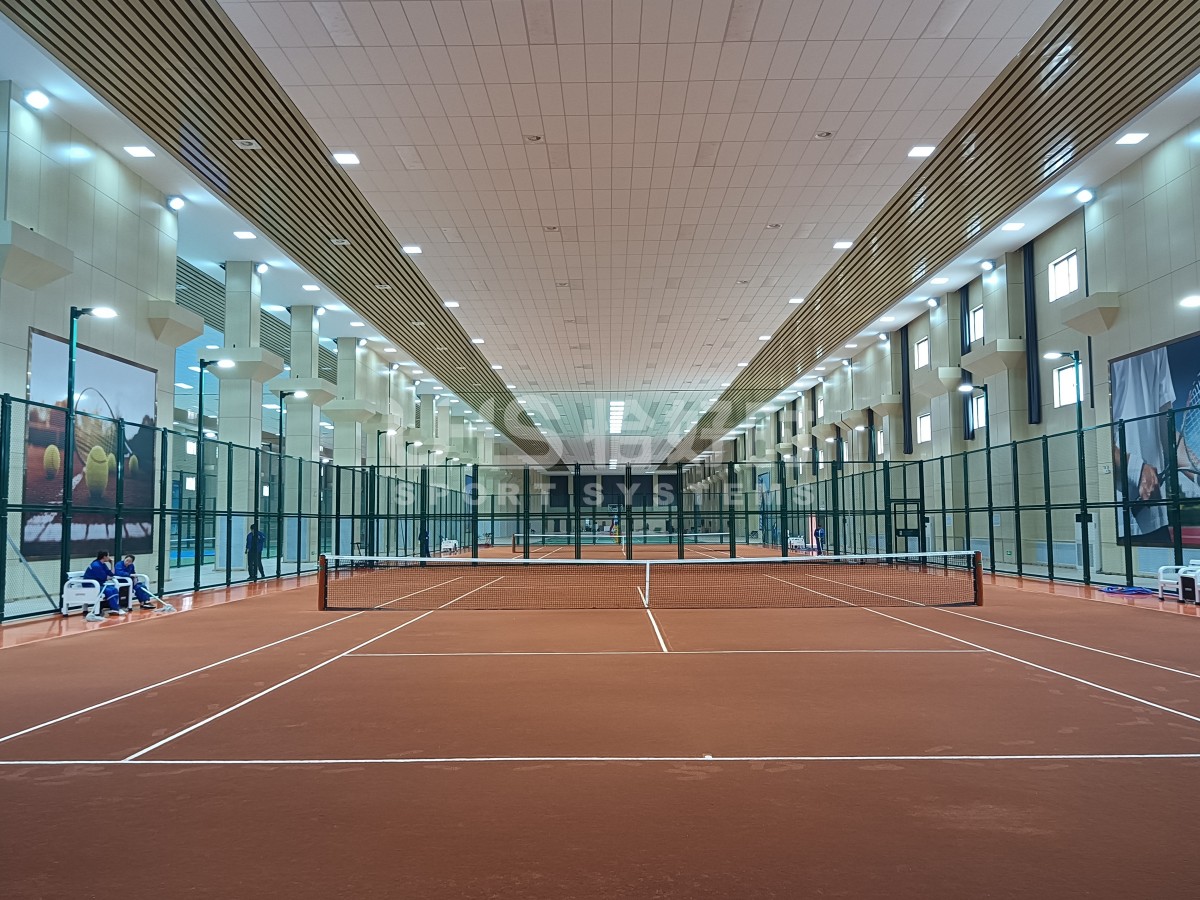

• Target Venues: Widely applicable for tennis courts, basketball courts, 5-a-side football fields, and other sports floodlighting venues.
