LSCD Series Professional Stadium Floodlight
Brand: 【UHS】
Product Name: 【Professional LED Tennis Court Light】
Item NO.：【LSCD Series】
Input Voltage: 【AC 100–220V, 50/60 Hz】
Rated Power: 【315/380/460/580/720/800W】
Light Source: 【Lumileds 5050 LED】
Size /Dimension:【468 mm × 468 mm × 343 mm】
Introduction
As a leading led flood light manufacturer, we proudly present our high-performance tennis court lights, engineered as an optimal led flood light for tennis court, a powerful flood light for sports field, and comprehensive led sports flood lighting and sport court flood lights for elite athletic venues.
Key Specifications & Configuration
- Product Model: LSCD-315/380/460/580/720/800W Stadium Floodlight.
- Color Rendering Index (CRI): CRI 70–90 optional, ensuring that athletes and the ball are clearly visible on the court.

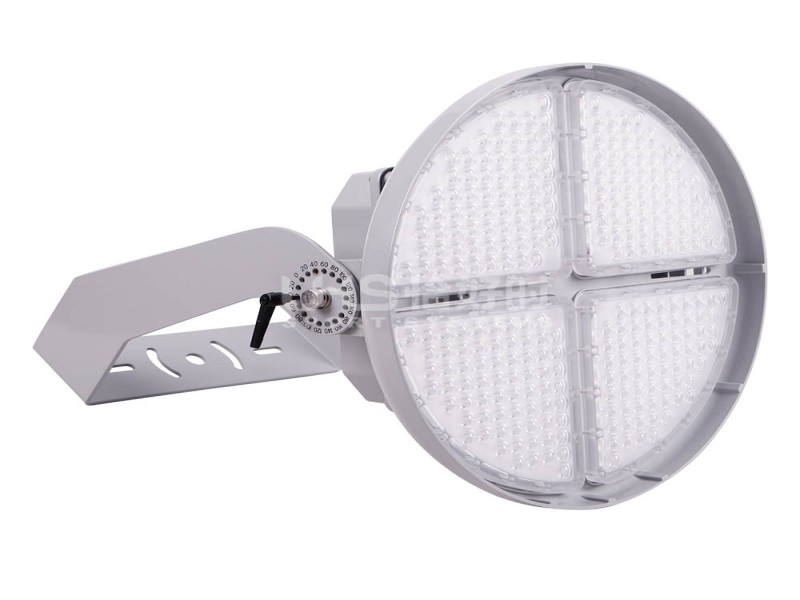

- Optical Design: PC lens arrangement adopts a matrix modular design for high luminous efficacy output. Multi-layer light-blocking rings are designed on the LED lenses to eliminate stray light, effectively reduce spill light, and meet professional visual requirements for stadiums.
- Light Distribution Options: Three professional light distribution designs offering flexible options for diverse stadium application requirements.
Technical Parameters by Power Range
1. LSCD-315W / 380W Models
- Input Voltage: AC 100–220V, 50/60 Hz.
- Rated Power: 315W / 380W.
- Light Source: Lumileds 5050 LED.
- Power Factor: >0.98.
- CRI & Color Temp: Customizable CRI and color temperature.
- Light Distribution: Three or more distribution options.
- IP Rating: IP66.
- Dimensions: 468 mm × 468 mm × 343 mm.
- Fixture Weight: 16 kg.
2. LSCD-460W / 580W / 720W / 800W Models
- Input Voltage: AC 100–220V, 50/60 Hz.
- Rated Power: 460W / 580W / 720W / 800W.
- Light Source: Lumileds 5050 LED.
- Power Factor: >0.98.
- CRI & Color Temp: Customizable CRI and color temperature.
- Light Distribution: Three or more distribution options.
- IP Rating: IP66.
- Dimensions: 550 mm × 550 mm × 336 mm.
- Fixture Weight: 20 kg.
Material & Craftsmanship

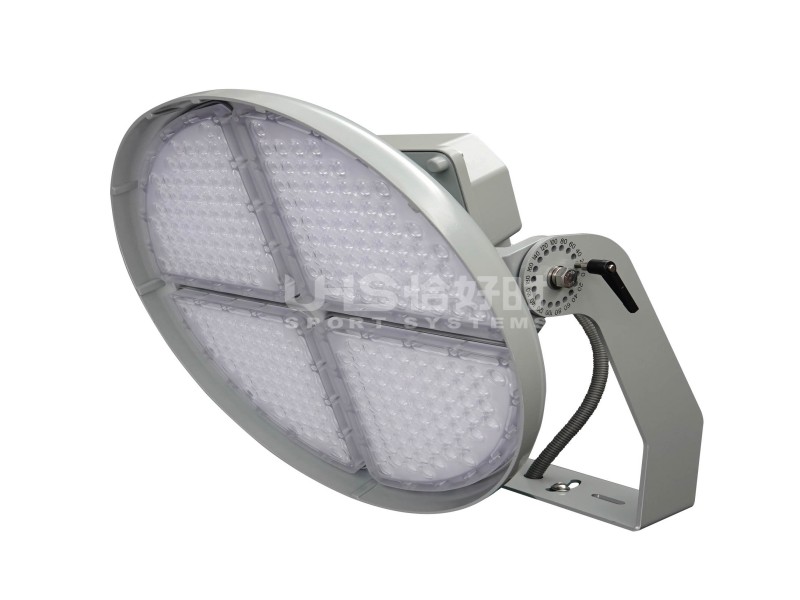

- Bracket Design: Ultra-tough bracket construction capable of supporting more than 10 times the weight of the lamp body, providing a safety factor higher than industry peers.

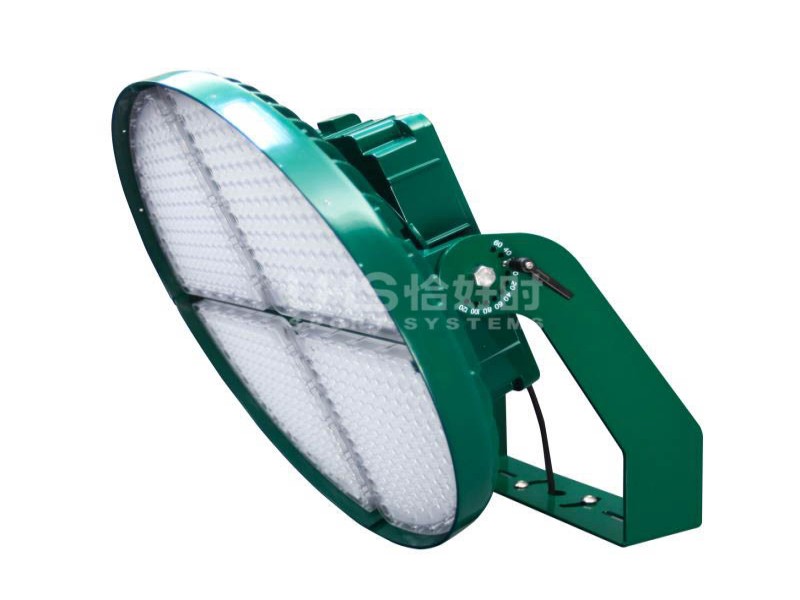

- Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, delivering exceptional high-temperature resistance, weather resistance, and rich color options.
Thermal & Structural Highlights
- Streamlined Appearance: The lamp body features a streamlined design that is both aesthetic and professional.
- Advanced Thermal Management: The backside utilizes a fin-type heat dissipation structure for superb thermal performance.
- Airflow Optimization: The internal sunken design and convection vents optimize airflow quality, enhance cooling efficiency, and fully guarantee the long service life of the fixture.
Electrical & Safety Features
- Power Supply Integration: Equipped with a built-in power supply featuring an instant-start function and a power factor above 0.98, ensuring high electrical efficiency, safety, and reliability.
- Protection Grade: IP66 protection level combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety.
