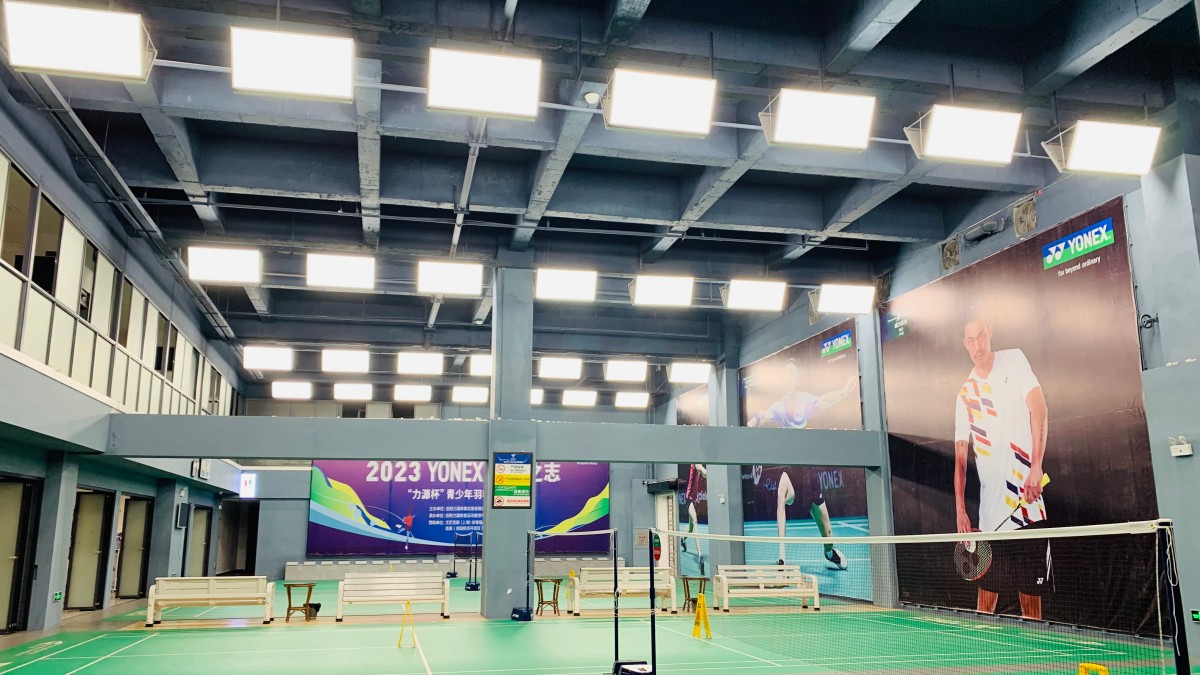

Badminton Court Lighting

As a trusted choice among professional lamp suppliers and leading sports lighting companies, we specialize in advanced energy efficient lighting systems. Our solutions are expertly engineered for lighting sports fields, outdoor sports lighting, and high-performance led sports field lighting applications.

Key Specifications & Configuration

• Optical Design: Features a modular PC lens with a matrix arrangement design for high luminous efficacy output.
• Light Distribution: Equipped with a 100-degree light distribution design featuring an optical anti-glare grid. Offers three or more professional light distribution options to flexibly meet diverse court application demands.
• Visual Clarity: CRI 70–90 optional, ensuring that athletes and the ball are clearly visible on the court.

Technical Parameters by Power Range

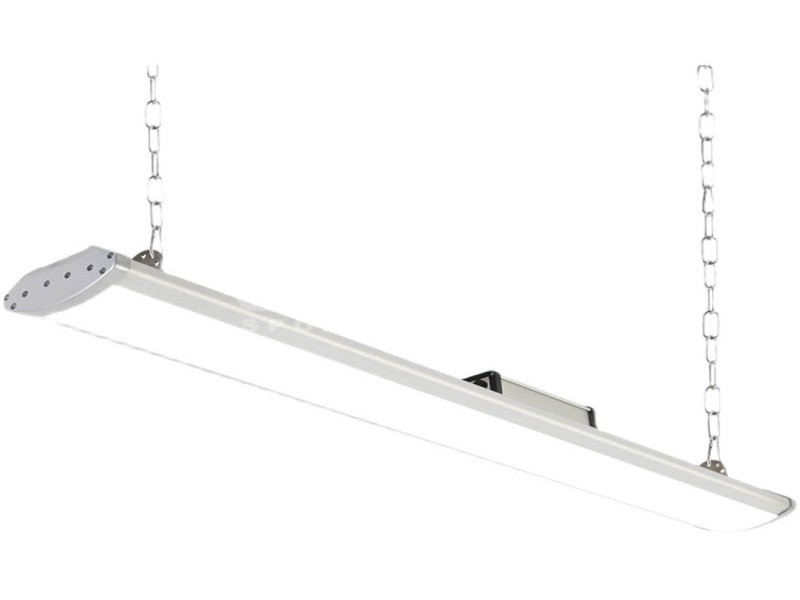

1. LBG-100W Model

• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 100W
• Light Source: Lumileds 3030 LED
• Power Factor: >= 0.95
• Color Rendering Index (CRI): 70 / 80
• Color Temperature: Customizable
• Light Distribution: 100-degree light distribution with optical anti-glare grid
• IP Rating: IP54
• Dimensions: 600 mm × 290 mm × 63 mm
• Fixture Weight: 4.5 kg

2. LBG-150W / 200W Models

• Input Voltage: AC 100–220V, 50/60 Hz
• Rated Power: 150W / 200W (equipped with Philips power supply)
• Light Source: Lumileds 3030 LED
• Power Factor: >= 0.98
• Color Rendering Index (CRI): Customizable
• Color Temperature: Customizable
• Light Distribution: 100-degree light distribution with optical anti-glare grid
• IP Rating: IP54
• Dimensions: 1200 mm × 290 mm × 80 mm
• Fixture Weight: 6.5 kg

Material & Craftsmanship

• Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, providing exceptional high-temperature resistance, weather resistance, and rich color options.
• Structural Design: Features an ultra-tough bracket design with strength capable of supporting more than 10 times the weight of the lamp body, providing a safety factor higher than industry standards.
• Thermal Management: The backside utilizes a fin-type heat dissipation structure for superb cooling performance. An internal sunken design and convection vents optimize airflow quality, enhance heat dissipation efficiency, and fully guarantee the service life of the fixture.

Electrical & Safety Features

• Power Supply Integration: Equipped with a built-in power supply featuring an instant-start function and a power factor above 0.98, ensuring high electrical efficiency, safety, and reliability.
• Protection Grade: IP66 protection level combining a waterproof structural design with a high-resistance silicone waterproof ring for dual protection and enhanced safety.
• Adjustable Projection: Features a lamp bracket with precise scale markings, allowing for arbitrary angle adjustments of the projection direction.

Applications

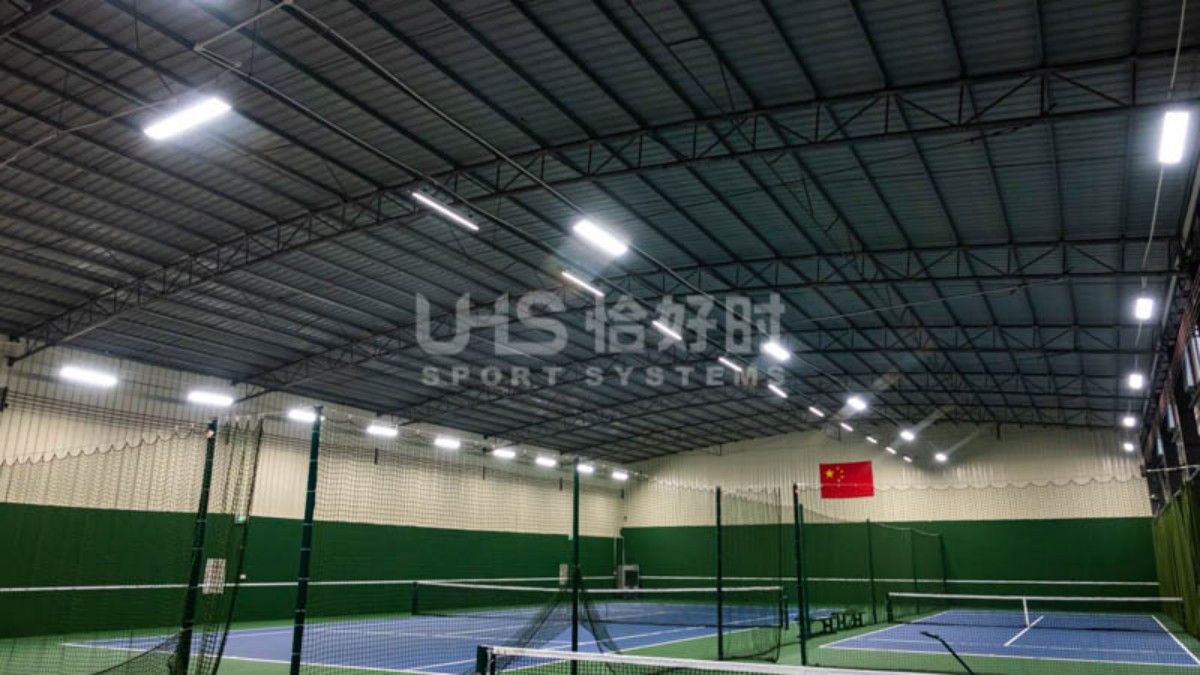

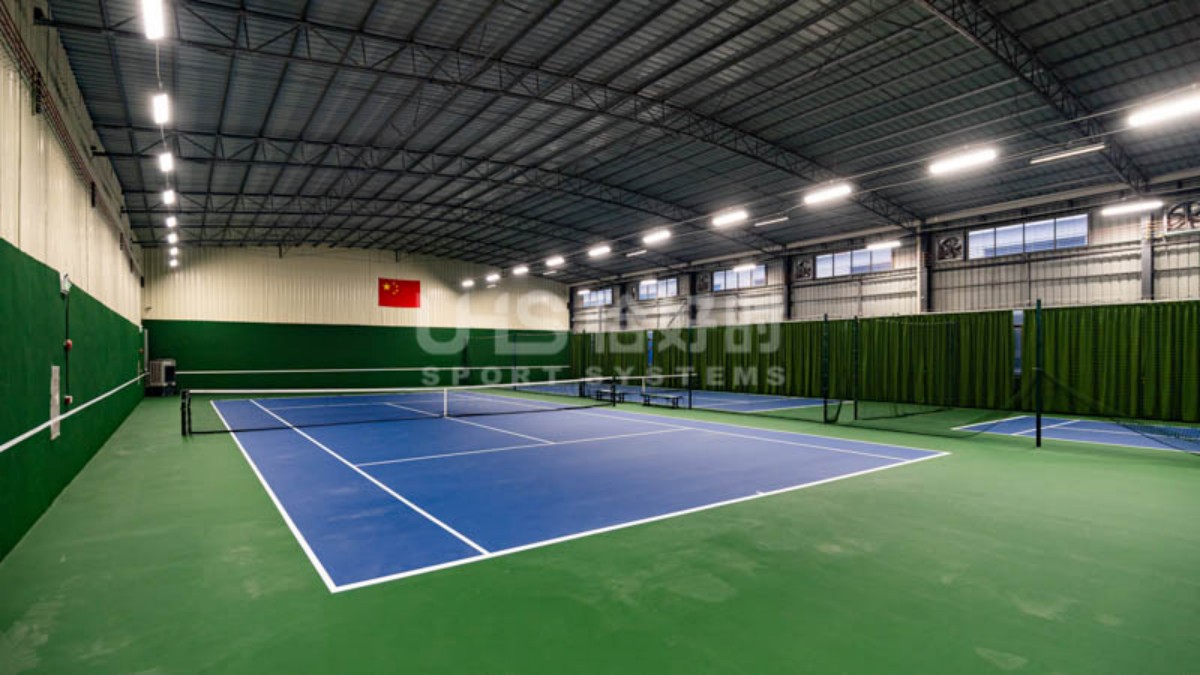

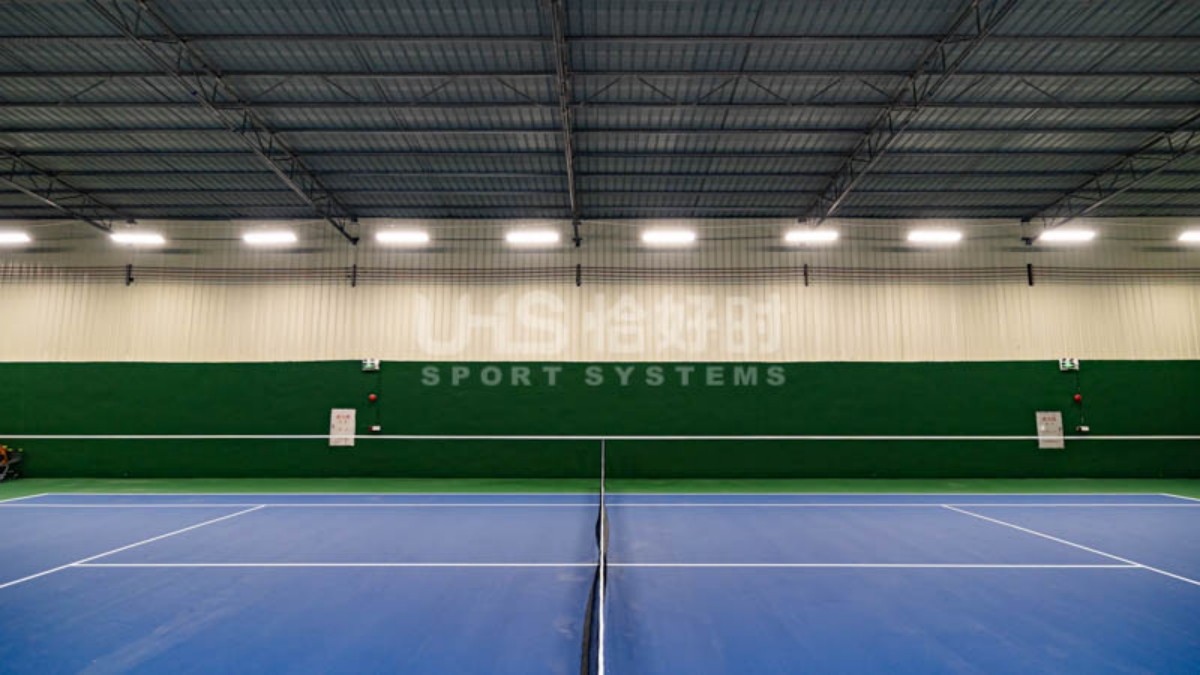

• Target Venues: Widely applicable for football fields, tennis courts, basketball courts, indoor gymnasiums, and other sports floodlighting venues.
