Badminton Court Lighting

As an expert in led light manufacturing, we specialize in advanced led lighting systems and high-performance led light system solutions. Integrating an efficient light system alongside versatile configurations—ranging from specialized commercial setups like a pick light system or led shelf lighting system concepts to elite athletic environments—our professional lighting products ensure unmatched quality and reliability.

Key Specifications & Configuration

• Optical & Lens Design: Features a modular PC lens with a matrix arrangement design for high luminous efficacy output.
• Professional Anti-Glare Optics: Equipped with a specialized 100-degree light distribution design featuring an optical anti-glare grid, providing soft, non-glaring illumination to ensure optimal performance for players.
• Light Distribution Options: Offers professional light distribution designs tailored specifically for indoor badminton court layouts, effectively improving light utilization and controlling spill light.
• Visual Clarity: CRI 70–90 optional (with standard CRI 70/80 options), ensuring true color reproduction and the perfect presentation of sports events.

Technical Parameters by Power Range

1. LB-100W Model

• Input Voltage: AC 100–220V, 50/60 Hz.
• Rated Power: 100W.
• Light Source: Lumileds 3030 LED.
• Power Factor: >= 0.95.
• Color Rendering Index (CRI): 70 / 80.
• Color Temperature: Customizable color temperature.
• Light Distribution: 100-degree light distribution with optical anti-glare grid.
• IP Rating: IP54.
• Dimensions: 600 mm × 290 mm × 63 mm.
• Fixture Weight: 4.5 kg.

2. LB-150W / 200W Models

• Input Voltage: AC 100–220V, 50/60 Hz.
• Rated Power: 150W / 200W (equipped with a reliable Philips power supply).
• Light Source: Lumileds 3030 LED.
• Power Factor: >= 0.98.
• Color Rendering Index (CRI): Customizable.
• Color Temperature: Customizable color temperature.
• Light Distribution: 100-degree light distribution with optical anti-glare grid.
• IP Rating: IP54.
• Dimensions: 1200 mm × 290 mm × 80 mm.
• Fixture Weight: 6.5 kg.

Material & Craftsmanship

• Surface Treatment: The lamp body heatsink undergoes electrostatic powder spraying, providing exceptional high-temperature resistance, weather resistance, and rich color options.
• Structural Design: Features a lightweight, integrated molding design that is both aesthetic and professional, utilizing an extruded aluminum profile heatsink structure for excellent thermal performance.
• Bracket Strength: Built with an ultra-tough bracket design with strength capable of supporting more than 10 times the weight of the lamp body, providing a safety factor higher than industry peers.

Electrical & Safety Features

• Power Supply Integration: Equipped with a built-in power supply featuring an instant-start function and a high power factor (>= 0.95 to >= 0.98), ensuring high electrical efficiency, safety, and reliability.
• Protection Grade: Features a waterproof structural design combined with a high-resistance silicone waterproof ring for dual protection and enhanced safety.
• Installation Flexibility: Supports both bracket installation and chain installation options, featuring an adjustable projection direction.

Applications

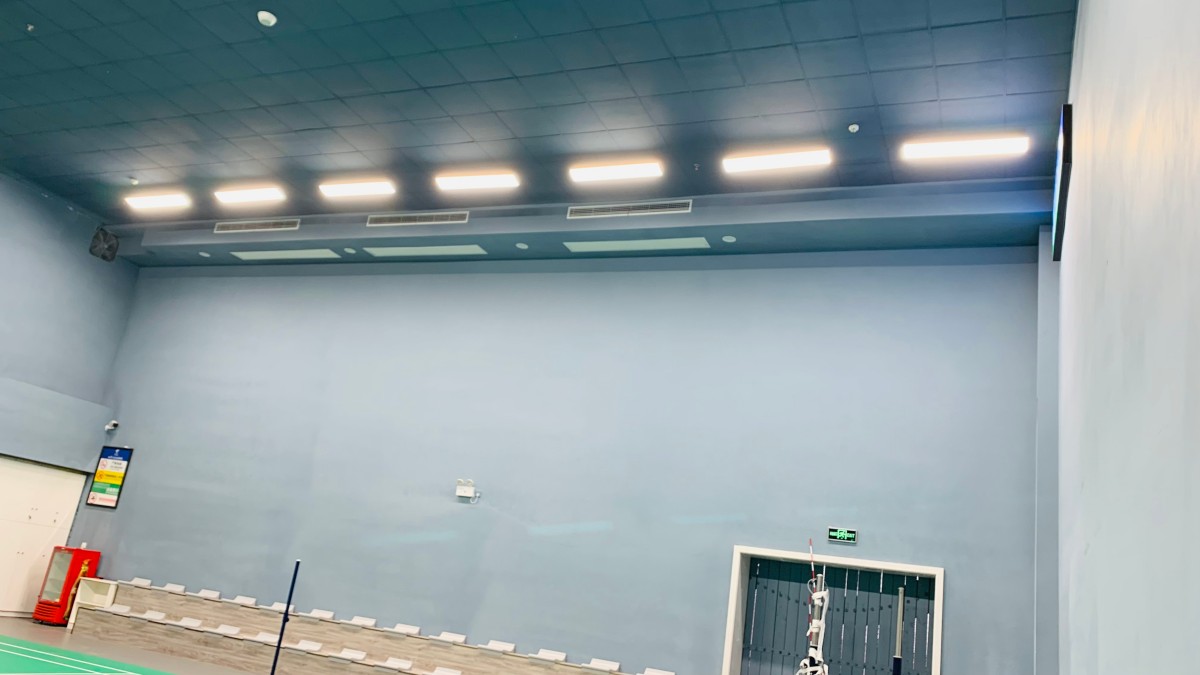

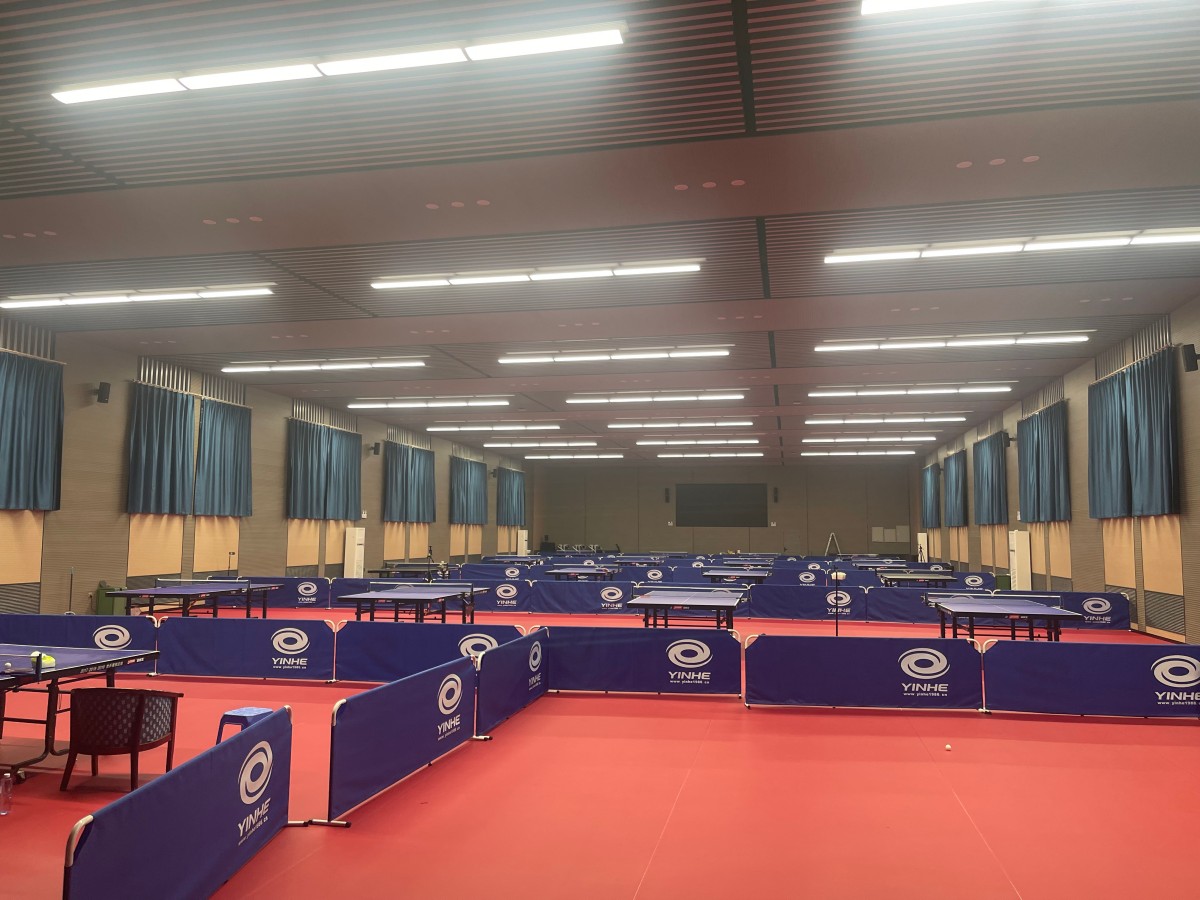

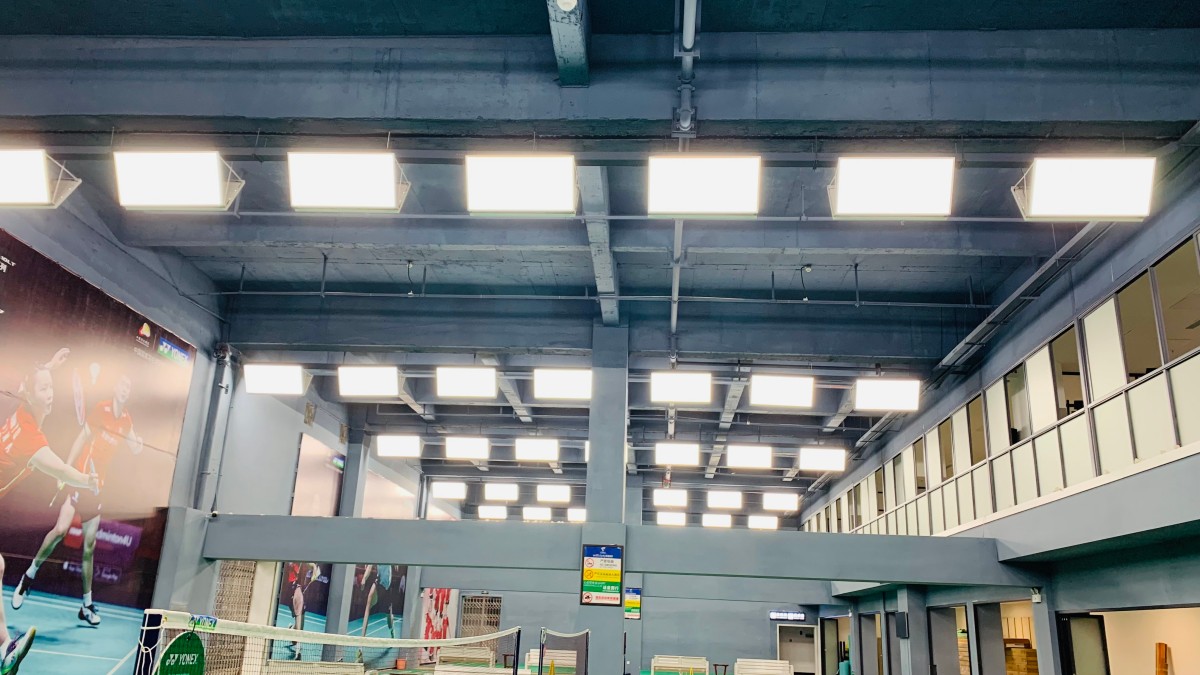

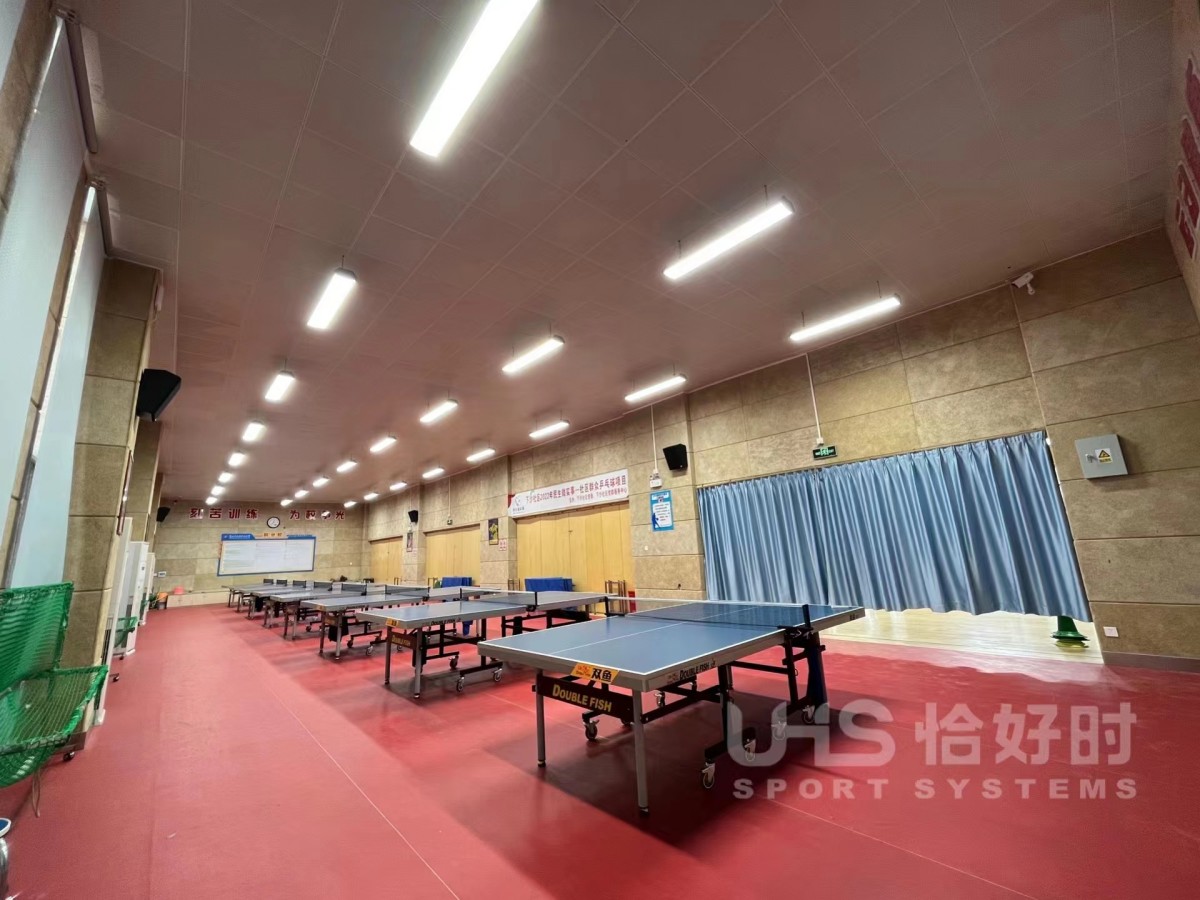

• Target Venues: Widely applicable for indoor badminton courts, basketball courts, and other sports lighting venues.
