Padle Tennis Lighting

Engineered for premium padel court lighting and led tennis court lighting, the GPL Series delivers exceptional illumination for athletic facilities. Whether outfitting an outdoor padel court or a large stadium, these fixtures provide precise light control that vividly highlights padel court colours and ensures peak visibility for athletes.

Key Features & Craftsmanship:

• Premium Optical Configuration: Equipped with an integrated PC lens in a matrix layout, delivering exceptionally high luminous efficacy and uniform light distribution.
• Rugged Durability: The high-density die-cast aluminum housing features an electrostatic powder-coated surface, ensuring superior high-temperature resistance and excellent weatherability for harsh outdoor environments.
• Advanced Heat Dissipation: The sleek, lightweight housing utilizes a fin-style heatsink structure. Combined with a sunken interior design and convection ventilation, it significantly optimizes airflow, maximizes heat dissipation, and guarantees a long operational lifespan.
• Double Waterproof Protection: Engineered with an IP66-rated waterproof structure and a high-resistance silicone sealing ring, providing double protection for reliable, safe operation.
• Precision Light Control: Professionally engineered for bilateral lighting layouts on sports courts. This specialized optical design maximizes light utilization while strictly controlling spill light and glare.
• Adjustable Aiming: Features a robust, adjustable mounting bracket with clear degree scales, allowing for precise up-and-down directional aiming.
• High-Performance Driver: The built-in power supply offers an instant-start function, a high power factor (PF > 0.98), and outstanding energy efficiency, ensuring safe and stable performance.

Technical Specifications

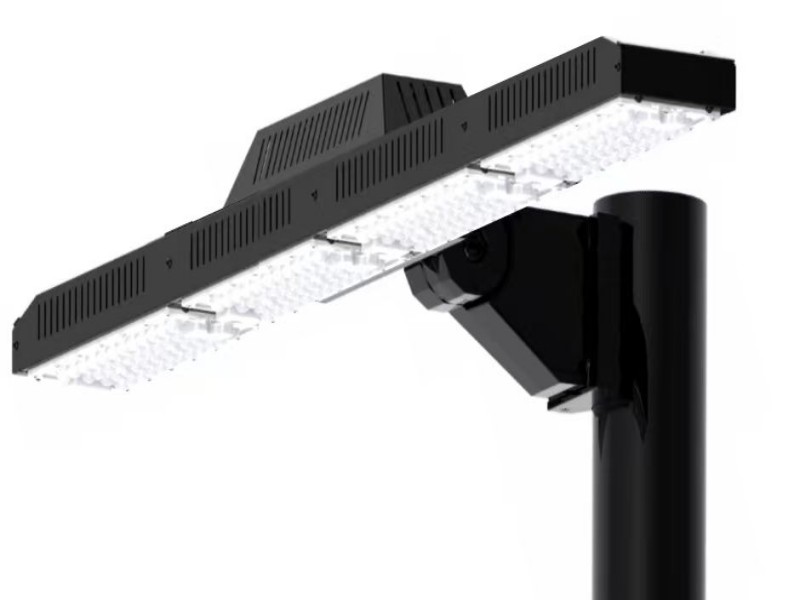

Model: GPL-300W Sports Floodlight

• Input Voltage: AC 100-270V, 50/60 Hz
• Rated Power: 300W
• Light Source: Lumileds 5050
• Power Factor (PF): > 0.98
• Color Rendering Index (CRI): 70 / 80 / 90 (Ensures high visibility of athletes and the ball)
• Color Temperature (CCT): 4000K / 5000K / 5700K
• Beam Angles: 8° / 20° / 40° / 60° / 90° (Five options available)
• IP Rating: IP66
• Certifications: CE, RoHS
• Dimensions: 942 × 376 × 187 mm
• Net Weight: 8.0 kg

Model: GPL-400W Sports Floodlight

• Input Voltage: AC 100-220V, 50/60 Hz
• Rated Power: 400W
• Light Source: Lumileds 5050
• Power Factor (PF): > 0.98
• Color Rendering Index (CRI): 70 / 80 / 90
• Color Temperature (CCT): 4000K / 5000K / 5700K
• Beam Angles: 8° / 20° / 40° / 60° / 90°
• IP Rating: IP66
• Certifications: CE, RoHS
• Dimensions: 1254 × 380 × 187 mm
• Net Weight: 10.0 kg

Applications

Target Venues: This series is the ultimate choice for sports stadium led lighting, widely applicable for professional and recreational venues including tennis courts, football pitches, basketball courts, badminton courts, and indoor sports gymnasiums.
