Looking for professional equipment for a multi-functional tennis and pickleball court? Whether you are comparing structural layouts like pickleball net vs tennis configurations or searching for heavy-duty pickleball net posts, the UHS-0803 model is an exceptional choice. Featuring a robust inground pickleball net design and an efficient pickleball training net setup, this system delivers elite stability, weather resistance, and professional performance for tournament and club play.

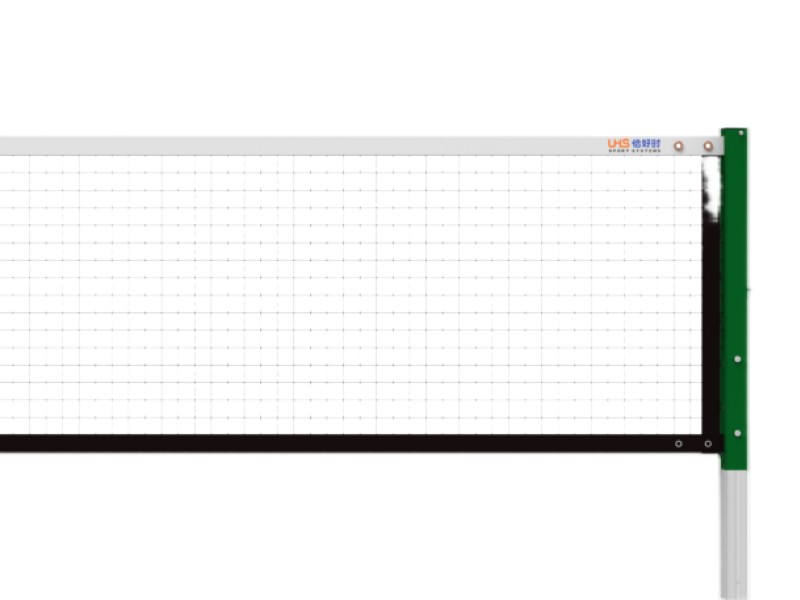

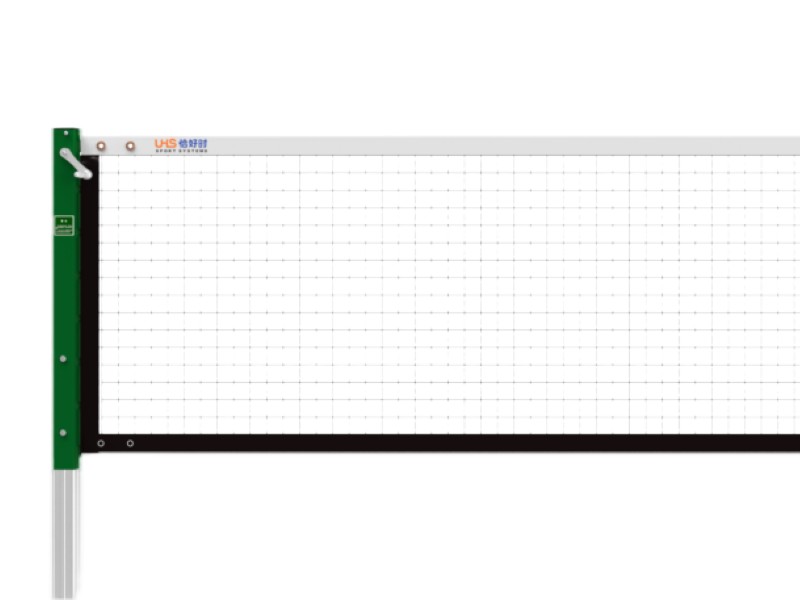

UHS-0803 Inground Pickleball Post and Net Set

Key Specifications & Features

• Product Model: UHS-0803 Inground Sleeve-Mounted Pickleball Post and Net Set (Combination)
• Configuration & Dimensions: Post center distance: 6,710 × 914 mm (Tolerance: ±20 mm); product net weight: approximately 13 kg.
• Material & Structure: Crafted from full aluminum alloy profiles paired with precision-engineered structural steel connection cores, 100% recyclable and eco-friendly.
• Surface Finish: Treated with an ultra-weather-resistant polyester powder coating, providing superior protection against complex environmental factors such as acid rain, dust, and UV radiation (UVB band). Built with aerospace-grade surface treatment technology to redefine outdoor engineering durability, offering a service life of over 10 years.
• Design & Functionality: Features a novel appearance with a detachable, modular design for a stable structure, complemented by a built-in wire winding and net tensioning system.

Component Specifications

1. UHS-0803-QW Pickleball Net

• Dimensions: Length 6,650 × Width 800 mm (Tolerance: ±20 mm)
• Mesh Size & Wire Diameter: Mesh size of 45 × 45 mm; wide-edge wire diameter of 2 mm.
• Color: Black
• Standard Configuration: Net, steel wire rope, and center strap.

2. UHS-0803-WZ Pickleball Net Posts

• Post Dimensions (Square Profile): Length 57 × Width 57 mm (Tolerance: ±20 mm).
• Ground Height (International Standard): 914 mm.
• Color: Forest Green.
• Standard Configuration: Net posts and main post crank handle.
